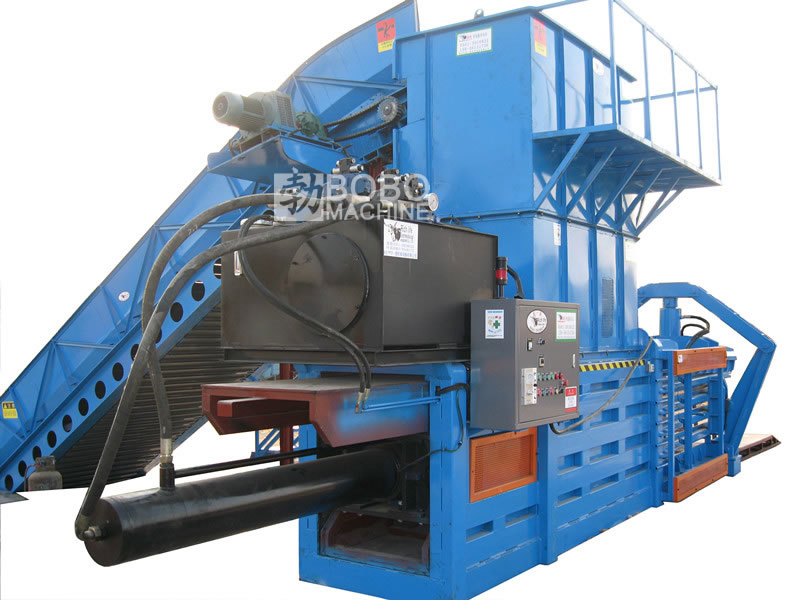

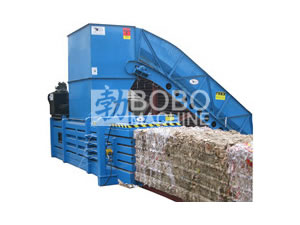

The fully automatic horizontal waste paper baler is specifically designed for use in large and medium-sized waste paper recycling centers. It is capable of compressing and packing waste newspaper, fluting paper, and much more. Complete with a streamlined exterior, a strong, durable structure, and a perfectly calibrated electric control system, this machine can handle auto feeding, pressing, measuring and discharging all with great efficiency. The baling machine can be further customized to fit client needs such as variable baler size, density and weight. The machine ships with a one year parts warrantee.
Technical Specifications
| Model | RH-150 | Remarks | |||
| Cylinder | Size | Main 250x2300 | Stroke | Main 2300mm | |
| Secondary 200x210 | Secondary 210mm | ||||
| Pressure | 90-150 Ton | Quantity | 2 pieces | ||
| Hydraulic system pressure | 2100psi | |
|||
| Material inlet size | 1100x1900mm | Customized | |||
| Bale size | 1800x1100x1200mm | Customized | |||
| Bale weight | 1.0-1.4Ton | |
|||
| Motor power | Main motor | 30kw | |
||
| Wire feeding device | 1.5kw | |
|||
| Conveyor | 5.5kw | |
|||
| Packing wire | Iron wire / plastic rope | |
|||
| Work method | Automatic control | |
|||
| Productivity | 8-10bales/hour | |
|||
| Motor specification | Oil pump | Taiwan | Capacity | 30kw | Customized |
| Rotary speed | 1460rpm | Voltage | 380V | ||
| Hydraulic oil | Model | 46# | |
||
| Tank capacity | 700kg | |
|||
| Machine weight | 15Ton | |
|||
As a professional waste paper baler manufacturer and supplier in China, we also provide spiral duct machine, duct elbow machine, corrugated pipe machine, foam cutting machine, and much more.
