Steel Rod Necking Machine

Home » Products » Machine Tools » Thread Rolling Machine » Steel Rod Necking Machine

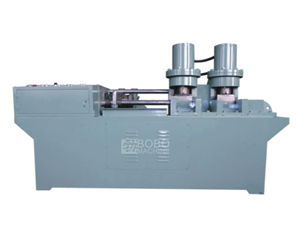

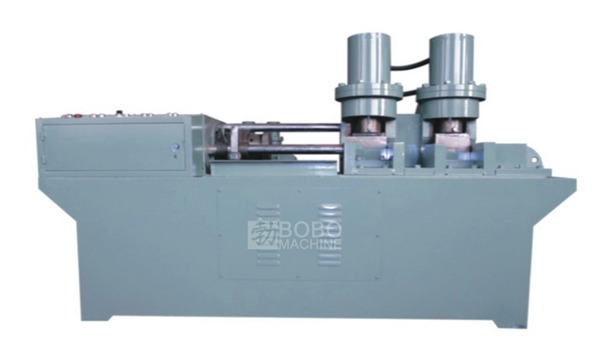

Steel Rod Necking Machine

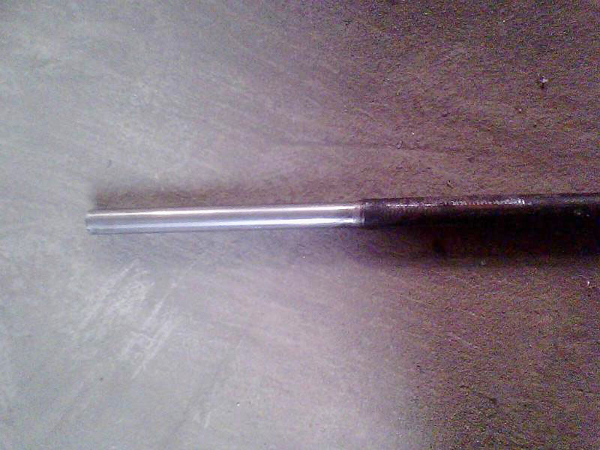

The steel rod necking machine is used to reduce the partial steel rod diameter by cold pressing technology. The compressed parts will be high density and high strength. With the diameter reducing process in advance, the final diameters of compressed parts after thread rolling can be keep same to the other part of steel rod. Compared to normal cutting lathe, the steel bar necking machine can increase the tensile strength and save the material consumption.


Main Technical Data

Mold SJ-32 SJ-42 SJ-50 SJ-60
Necking extent 16-35mm 16-42mm 16-50mm 16-65mm
Necking range ≤2mm ≤2mm ≤2mm ≤2mm
Necking length 10-200mm 10-300mm 10-400mm 10-450mm
Hydraulic power 16kw 18.5kw 22kw 30kw
Cooling power 0.09kw 0.09kw 0.09kw 0.125kw
Extension rate 10%-15% 10%-15% 10%-15% 10%-15%
Weight 1400±50kg 1600±50kg 3000±50kg 4500±50kg
Dimension 1800*750*1450mm 2000*860*1500mm 2500*900*1600mm 2800*1500*1750mm
