Staple Pin Making Machine

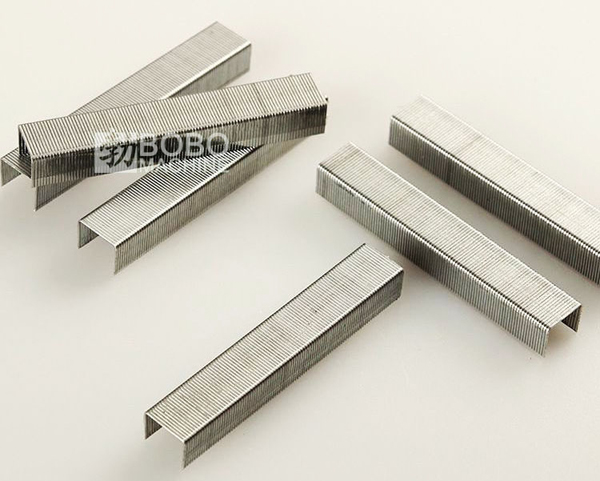

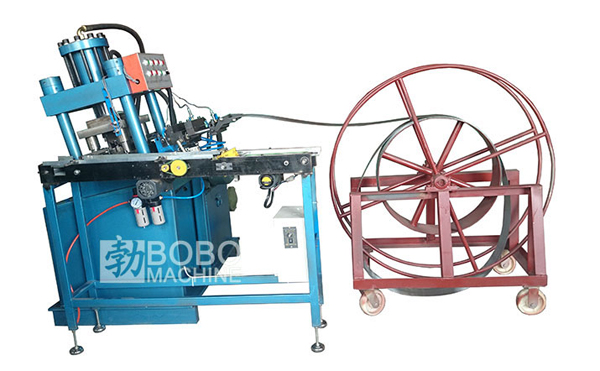

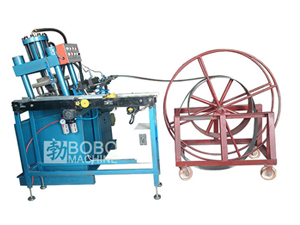

The staple pin making machine is used to produce the U profile, N profile, K profile pin, etc. which is widely used in school and package binding, etc. It adopts hydraulic system for execution parts, and the microcomputer is centralized controlled by PLC, so our staple pin making machine is safe to operate with stable performance, low noise, etc.

Technical data Unit TJB-U25
Nominal force KN 250
Speed Time/min 90-170
Width of plate mm 60-120
Thickness of plate mm 0.4-0.7
Dimensions FXB mm 1200
LXR Mm 1300
H mm 1550
Motor power Kw 4
Weight Kg 1500
