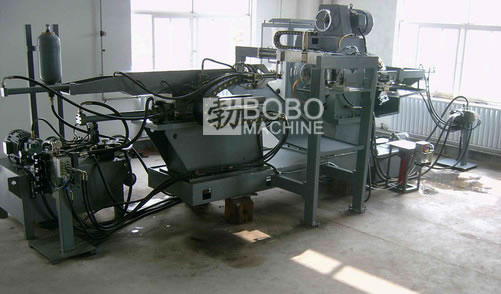

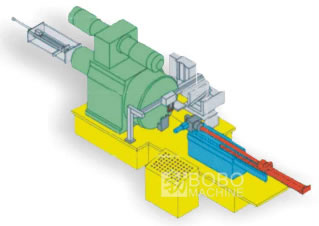

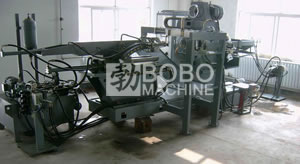

Rotary Swaging Machine

The rotary swaging machine processes metal work piece for diameter reduction, end shrinkage, and material densification via cold or hot forming. The ideal work piece may be a rod, bar, pipe, wire copper rope, mild steel, stainless steel, titanium, alloy titanium, and other similar materials. After being processed by the rotary swaging machine, the work piece will have a smoother surface and a more solid form with significantly increased density. BOBO supplies this machine in either a manual model, or a fully automatic model with unmanned feeding, swaging, and unloading work. The rotary swaging mould will be three or four pieces, based on the provided client-side technical drawing.

Technical Specifications

Model RX50 RX30 RX20 RX12 RX05
Diameter (For bar) Max.40mm Min.8mm Max.26mm Min.5mm Max.16mm Min.4mm Max.12mm Min.3mm Max.5mm Min.0.5mm
Diameter (For pipe) Max.55mm Min.8mm Max.35mm Min.5mm Max.20mm Min.4mm Max.16mm Min.3mm Max.7mm Min.0.5mm
Precision ±0.025mm ±0.02mm ±0.02mm ±0.02mm ±0.01mm
Surface Finish 3.2 1.6 1.6 1.6 0.8
Die pieces 4 4 4 4 3
Die size 127mm ×80mm 100mm ×60mm 100mm ×60mm 80mm ×35mm 50mm ×20mm
Pressing ball QTY 12 12 12 12 12
Lubrication 0.75KW , 20L /min 0.75KW , 12L /min 0.75KW , 12L /min 0.75KW , 12L /min 85W , 4L /min
Spindle speed 215rmp 300rmp 350rpm 450rpm 650rpm
Motor power 30kw 15kw 11kw 7.5kw 1.5kw

BOBO Machine is a specialized rotary swaging machine manufacturer in China. We also produce spiral duct machine, steel ball making machine, Polyurethane Spray Foam Machine, among others.
