PortuguêsCotton Textile Baler, Pipe Duct Machine, PU Foam Machine, Wheel Machine, Filter Making Machine

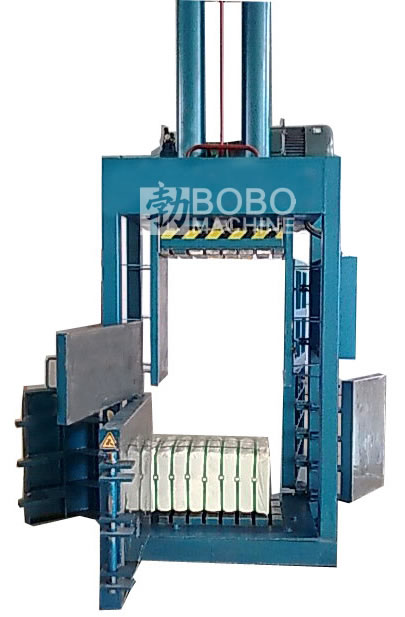

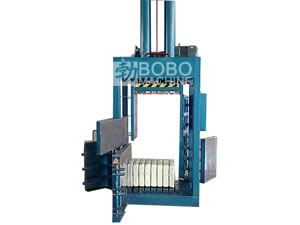

The cotton textile baler machine is specifically designed for the efficient compression of old cloth, towel, rags, fibers and other textiles. BOBO provide two possible options for this unit, either the three-open-door or the four-open-door model is available. The machine is powered by two hydraulic cylinders that are capable of a combined pressure ranging from 30ton to 60ton. The entire textile baler frame is welded from high integrity steel that has been quenched for increased stability. This unit is shipped in a steel frame and wooden case for optimal protection. Note that the nominal pressure can be up to 100ton and the bale size can be up to 1200x800mm. The bale size and specifications are entirely customizable by client request. Customizable exterior machine paint and OEM service are available upon request.
Technical Specifications
| Type | RX30-6040 | RX40-7040 | RX50-7040 | RX60-1060 |
| Pressing power | 30 tons | 40tons | 50tons | 60tons |
| Baling size | 600*400 | 700*400 | 700*400 | 1000*600 |
| Baler weight | 30-11 0kg | 50-150kg | 90-200kg | 150-300kg |
| Cycle time | 30-35s | |||
| Efficiency | 3-5bale/hour | |||
| Ejection method | Manual | |||
| Wire quantity | Horizontal and vertical wire quantities to be decided by customers | |||
| voltage | 38 0v , 50hz, 3phrase(can be customized) | |||
| Working method | Semi-automatic | |||
| Control way | Motor-driven button | |||
| Power | 5.5kw | 7.5kw | 11kw | 11kw |
| Weight | 1200kg | 1300kg | 1350kg | 1500kg |
| Dimension | 1150*950*3000 | 1150*950*3200 | 1150*1150*3200 | 1350*1350*3450 |
We are a specialized cotton textile baler manufacturer in China. At BOBO Machine we also offer car wheel rim machine, flexible duct machine, bolt and nut machine, and more.
