Two-Die Thread Rolling Machine

Home » Products » Thread Rolling Machine » Two-Die Thread Rolling Machine

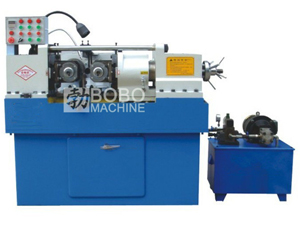

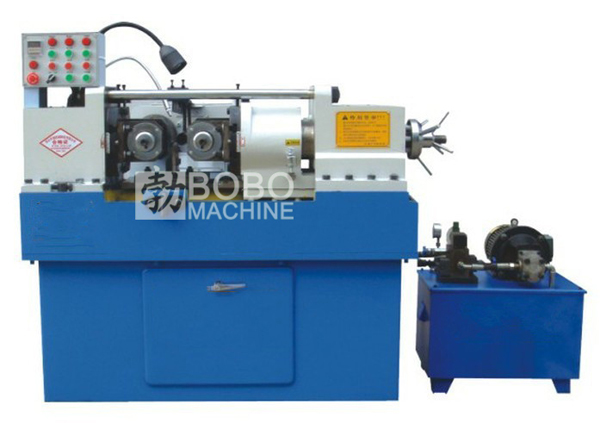

Two-Die Thread Rolling Machine

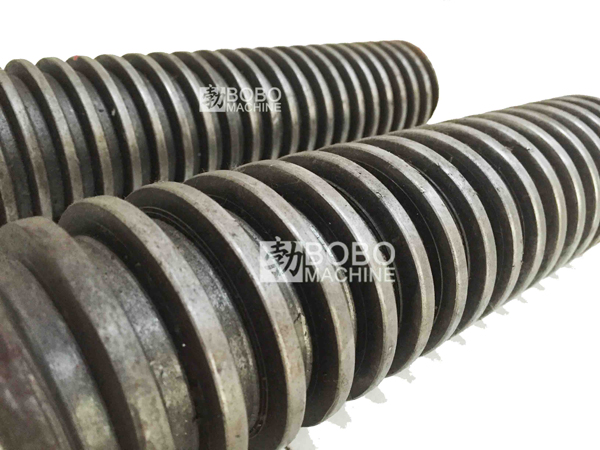

The two-die thread rolling machine is used to form the straight thread, screw thread, and inclined thread on solid bar and solid rod. It can be customized according to the nonstandard screw thread. The thread rolling machine is used to make the bar or rod with diameter of 5-30mm, screw pitch of 1-2mm, and the thread rolling length is unlimited as you like. With hydraulic drive system, the 2 die cylindrical machine can work strongly and smoothly, the hydraulic pressure is adjustable. We will supply necessary spare parts free of charge at least one year. The two-die thread rolling machine is easy to operate, we will supply the video and operation manual, we also can provide free training service. The wooden package is optional to protect the cylindrical thread rolling machine well during shipment.

Main Technical Data
Model Z28-40 Z28-80 Z28-150 Z28-200 Z28-250 Z28-500 Z28-650
Max. roll pressure 80KN 150KN 180KN 200KN 280KN 500KN 650KN
Threading diameter Φ5-Φ30mm Φ5-Φ42mm Φ5-Φ50mm Φ5-Φ60mm Φ5-Φ90mm Φ5-Φ100mm Φ5-Φ120mm
Threading pitch 1-2mm 1-3mm 1-3.5mm 1-4mm 1-6mm 1-10mm 1-15mm
Roller diameter Φ120-Φ170mm Φ120-Φ240mm Φ120-Φ170mm Φ150-Φ270mm Φ150-Φ300mm Φ150-Φ300mm Φ300-Φ410mm
Spindle speed 34-72 r/min 36-78 r/min 36-78 r/min 16-90 r/min 16-90 r/min 16-90 r/min 16-90 r/min
Active power 4kw 4kw 5.5kw 11kw 15kw 18kw 22kw
Hydraulic power 2.2kw 2.2kw 2.2kw 4kw 5.5kw 6.5kw 7.5kw
Cooling power 90w 100w 100w 125w 125w 125w 125w
Threading length Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
Unit weight 1100±50kg 1400±50kg 1700±50kg 2300±50kg 3000±50kg 5000±50kg 6100±50kg
Dimensions 1480*1500*1050mm 1500*1380*1140mm 1600*1550*1445mm 1700*1850*1550mm 2450*1780*1670mm 2450*2000*2000mm 2300*2540*2700mm
