PortuguêsStraw Hay Baler, Pipe Duct Machine, PU Foam Machine, Wheel Machine, Filter Making Machine

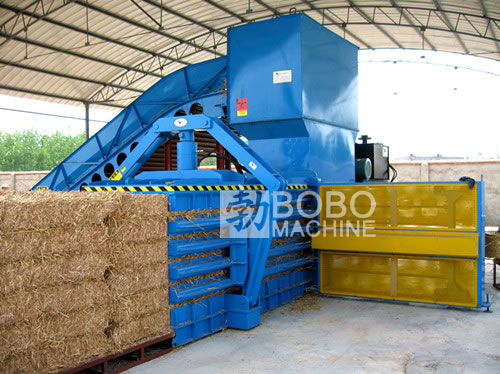

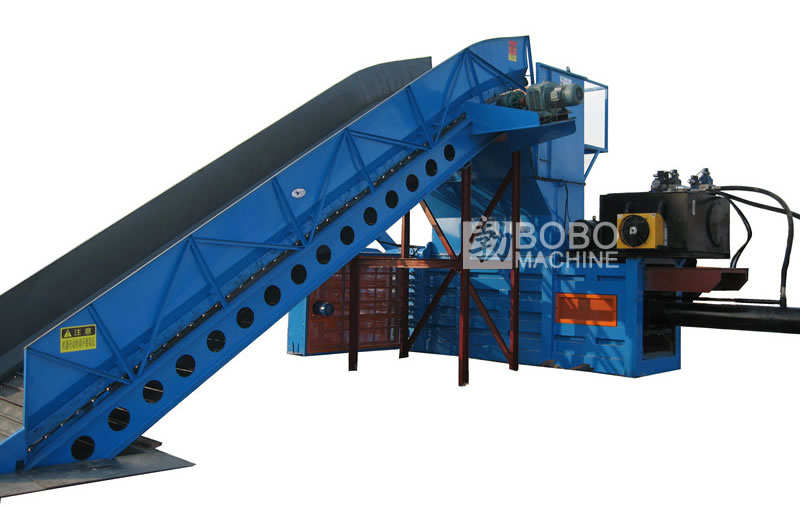

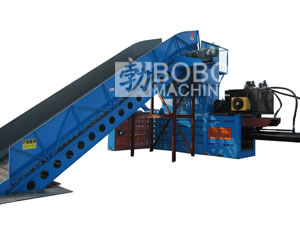

The horizontal straw hay baler is designed for the efficient packaging of loose material such as cotton yarn, cotton waste, tobacco leaf, plastic, wool top, cocoon, silk, grass, straw, hay, cardboard boxes, plastic bags, and much more. Stable and durable, the machine is perfect for site work and ships with a one year parts warrantee. The straw hay baler is shipped via a sturdy steel frame and wooden case to ensure product integrity during transport. Customizable exterior paint and OEM service are also available by client request. We are well stocked at all times. Allow 7-10 days for delivery.
Technical Specifications
| RH-100 | Remark | ||||||
| Cylinder | Size | Main | 220*2300 | Stroke | Main | 2300mm | Customized |
| Secondary | 200*210 | Secondary | 210mm | ||||
| Nominal pressure | 60-100Ton | Quantity | 2 pieces | ||||
| Hydraulic system pressure | 2100psi | ||||||
| Material inlet size | 1100*2300mm | Customized | |||||
| Bale size | 1800x1100x1000mm | Customized | |||||
| Bale weight | 400-650KG | ||||||
| Motor power | 22KW (Main machine)+1.5KW(wire feeding machine) | ||||||
| Baling wire | Iron wire / plastic rope | ||||||
| Work method | Semi-automatic + remote control | ||||||
| Productivity | 6-12bales/hour | ||||||
| Motor specification | Oil pump | Taiwan | Capacity | 22KW | 30KW optional | ||
| Rotary speed | 1460rpm | Voltage | 380V | ||||
| Hydraulic oil | Model | 46# | |||||
| Tank capacity | 600KG | ||||||
| Machine weight | 10.5Ton | ||||||
| Dimension | 8200mm x2130mm x1650mm | ||||||
As a professional straw hay baler manufacturer in China, our company also provides corrugated pipe machine, Packaging Foam Machine, PU Gasket Seal Machine, metal chip briquetting machine, and much more.
