Glass Processing Machinery
Glass processing machinery includes automatic glass loading station, manual / semi-automatic or automatic glass cutting tables, horizontal and vertical single line glass edging machine, double line glass straight edging machine, glass drilling machine and glass cleaning.
Besides this glass production line, we also have special machines for processing mirror, phone screen, and optical glass. And we can customize machines for glass with special sizes.

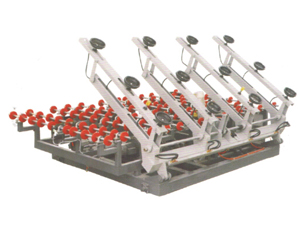

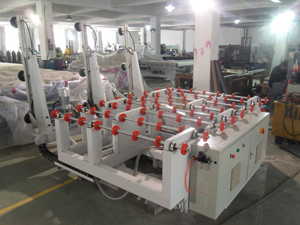

Glass Loading Machine
| Series No. | Description | Parameter |
| 1 | Model | 2621 single station |
| 2 | Min. glass size | 1000x1000mm |
| 3 | Max. glass size | 2600x2000mm |
| 4 | Glass thickness | 3-19mm |
| 5 | Fastest loading cycle | 40-60 seconds |
| 6 | Transmission speed | 0 ~ 40m / min (adjustable) |
| 7 | Max. suction piece depth | 700mm |
| 8 | Max. glass weight | 750kg |
| 9 | Loading arm quantity | 3 arm |
| 10 | Voltage | 380V/50Hz (customized) |
| 11 | Installed power | 4.15Kw |
| 12 | Compressed air | 0.3Mpa |
| 13 | Vacuum pressure | -70 ~ 90Kpa |
| 14 | X-axis regular walking speed | 25 m / min (frequency adjustable) |
| 15 | Y-axis regular walking speed | 5 m / min (frequency adjustable) |
| 16 | Table height | 910±20mm |
| 17 | Machine size | 2800x1900x980mm |

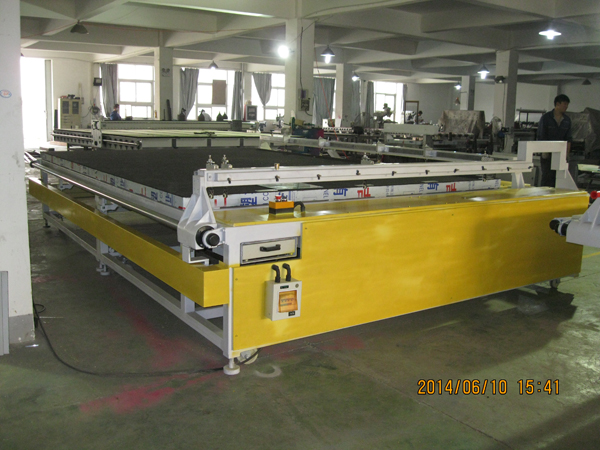

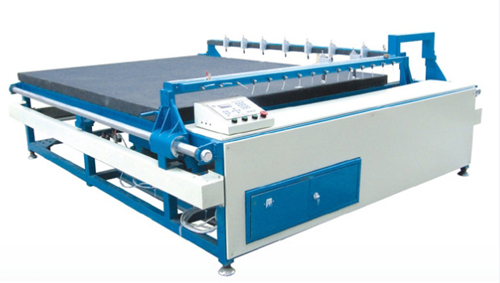

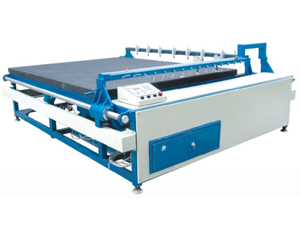

Semi-Automatic Glass Cutting Machine
| Series No. | Description | Parameter | Parameter | Parameter | Parameter |
| 1 | Model | SY-700 | SY-1212 | SY-2621 | SY-4026 |
| 2 | Max cutting size | 650*650mm | 1150*1150mm | 2550*2050mm | 3660*2440mm |
| 3 | Min cutting size | 10*10mm | 10*10mm | 20x20mm | 20*20mm |
| 4 | Cutting thickness | 2-19mm | 2-19mm | 2-19mm | 2-19mm |
| 5 | Cutting diagonal | ≤±0.20mm | ≤±0.20mm | ≤±0.20mm | ≤±0.20mm |
| 6 | Cutting parallelism | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm |
| 7 | Table size | 700*700mm | 1200*1200mm | 2600*2100mm | 4000*2600mm |
| 8 | Weight | 400kg | 770kg | 1650kg | 3500kg |
| 9 | Dimension | 1400*1300*1040mm | 1910*1850*1150mm | 3050*2550*1140mm | 4500*3050*1140mm |

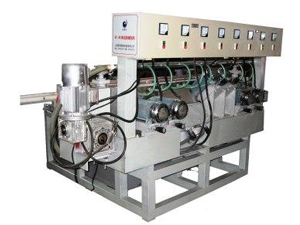

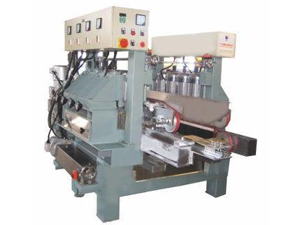

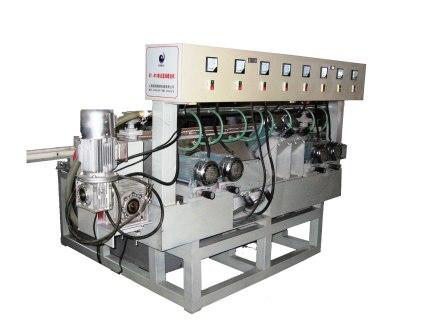

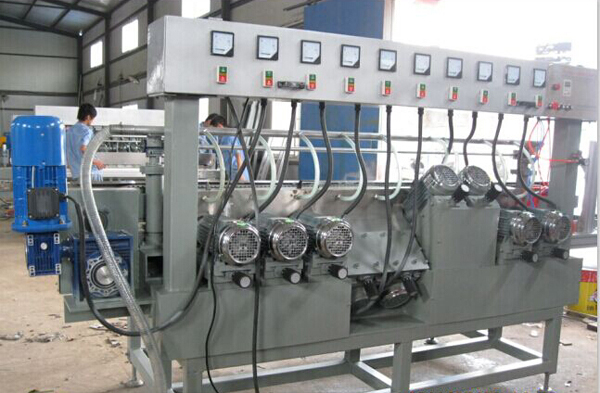

Horizontal Single Line Glass Edging Machine
| Series No. | Description | Parameter | Parameter | Parameter |
| 1 | Model | SY-1000-4 | SY-1500-5 | SY-2000-8 |
| 2 | Max processing glass size | 1000x1000mm | 1500x1500mm | 2000x2000mm |
| 3 | Min processing glass size | 50x50mm | 50x50mm | 50x50mm |
| 4 | Processing glass thickness | 2-25mm | 3-25mm | 3-25mm |
| 5 | Feeding speed | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min |
| 7 | Power | 8kw | 10.2kw | 13.6kw |
| 8 | Weight | 1300kg | 1600kg | 2200kg |

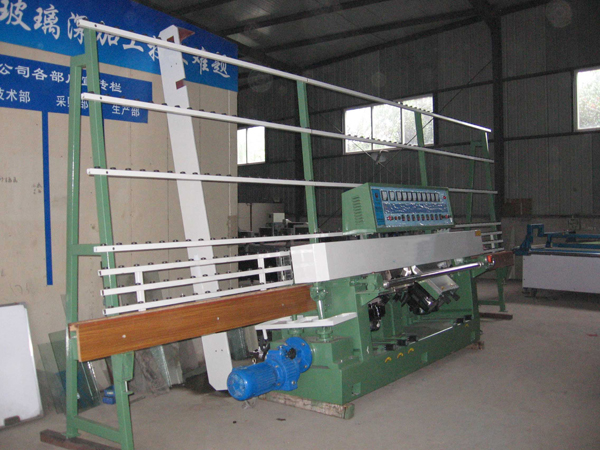

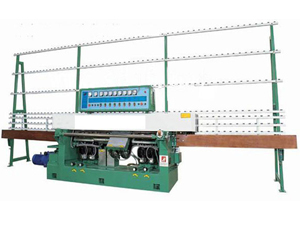

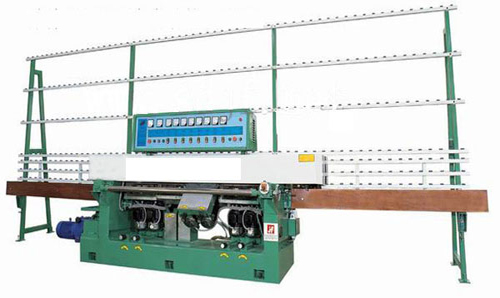

Vertical Single-Line Edge Grinding Machine
| Series No. | Description | Parameter |
| 1 | Model | SY-9243 |
| 2 | Max. processing glass size | 3600x2400mm |
| 3 | Min. processing glass size | 100x100mm |
| 4 | Processing glass thickness | 3-19mm |
| 5 | Worktable height | 750mm |
| 6 | Beveling angle | 0-20° |
| 7 | Feeding speed | 0.3-3m/min |
| 8 | Power | 18kw |
| 9 | Dimension | 7500x1000x2500m |
| 10 | Weight | 5000kg |

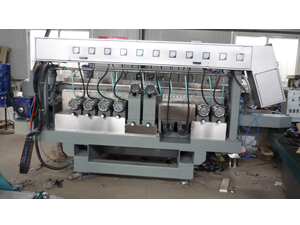

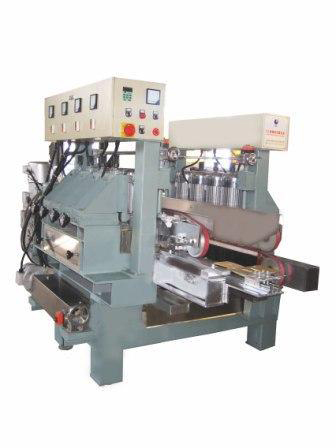

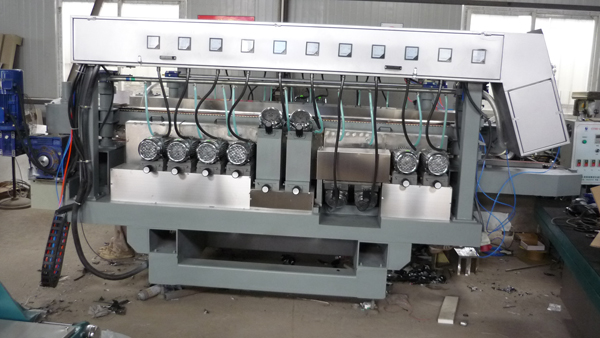

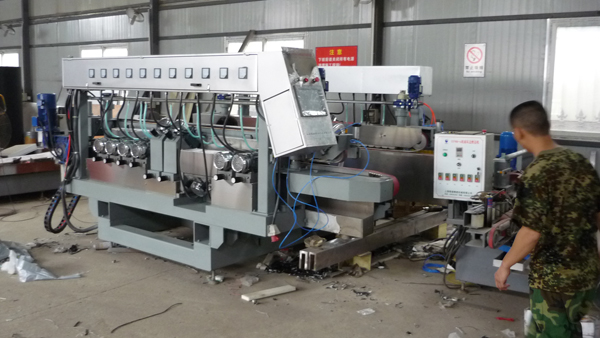

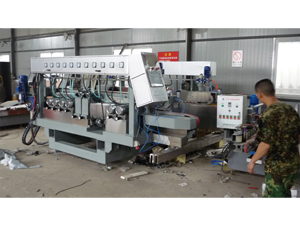

Large Glass Double Line Straight Edging Machine
| Series No. | Description | Parameter | Parameter | Parameter |
| 1 | Model | SY-2500-18 | SY-3500-18 | SY-4000-20 |
| 2 | Max. processing glass size | 2500x2500mm | 3500x3500mm | 4000*4000mm |
| 3 | Min. processing glass size | 200x200mm | 300x300mm | 450*450mm |
| 4 | Processing glass thickness | 3-25mm | 3-25mm | 3-25mm |
| 5 | Parallelism | ±0.2mm/m | ±0.2mm/m | ±0.2mm/m |
| 6 | Diagonal | ±0.3mm/m | ±0.3mm/m | ±0.3mm/m |
| 7 | Power | 23.2kw | 23.2kw | 25.4kw |
| 8 | Weight | 7500kg | 9000kg | 9500kg |

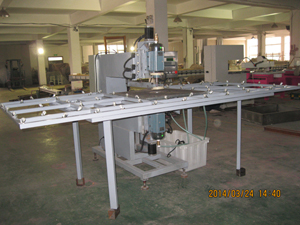

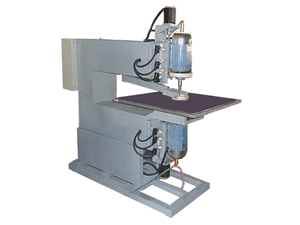

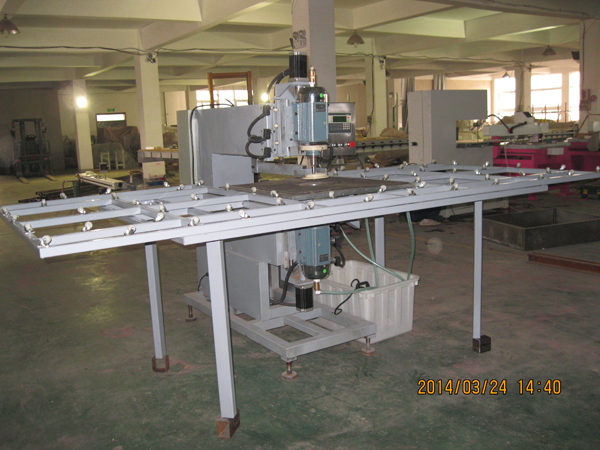

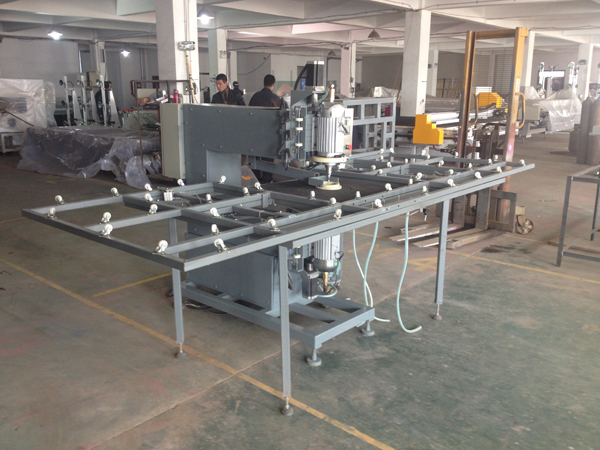

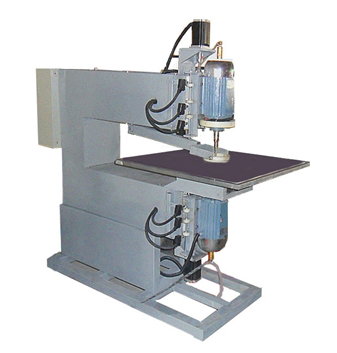

Glass Drilling Machine
| Series No. | Description | Parameter |
| 1 | Model | DR-1200 |
| 2 | Drilling diameter | 3-120mm |
| 3 | Max. glass size | 2000x3000mm |
| 4 | Glass thickness | 0.7-19mm |
| 5 | Machine size | 2500x2000x1650mm |
| 6 | Weight | 1200kg |
| 7 | Power | 4.4kw |

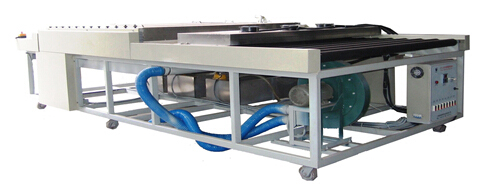

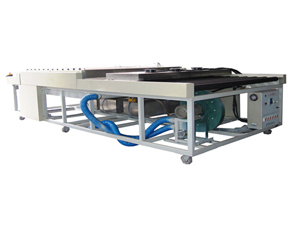

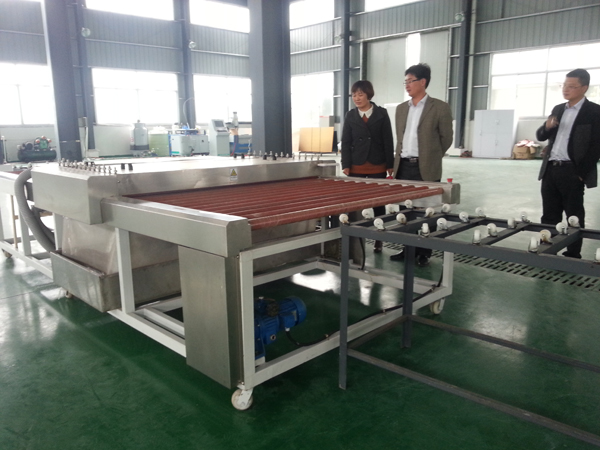

Glass Cleaning Machine
| Series No . | Description | Parameter | Parameter | Parameter | Parameter |
| 1 | Model | SY-500 | SY-1000 | SY-2000 | SY-2 5 |
| 2 | Max . glass width | 500mm | 1000mm | 2000mm | 2500mm |
| 3 | Min . glass width | 30*30mm | 100*100mm | 500 *500 mm | 600*600mm |
| 4 | Fan power | 0.8Kw | 2.5KW | 3Kw | 3KW |
| 5 | Machine power | 7.5Kw | 11KW | 15Kw | 15KW |
| 6 | Weight | 500kg | 1300kg | 2800kg | 3000kg |
| 7 | Dimension | 1850*650*1000mm | 3100*1150*100mm | 5800x2200x1000mm | 600*2650*1000mm |
