PU Elastomer PU Gasket Seal Machine

This product has been discontinued and removed from our shelves.

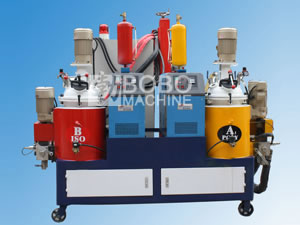

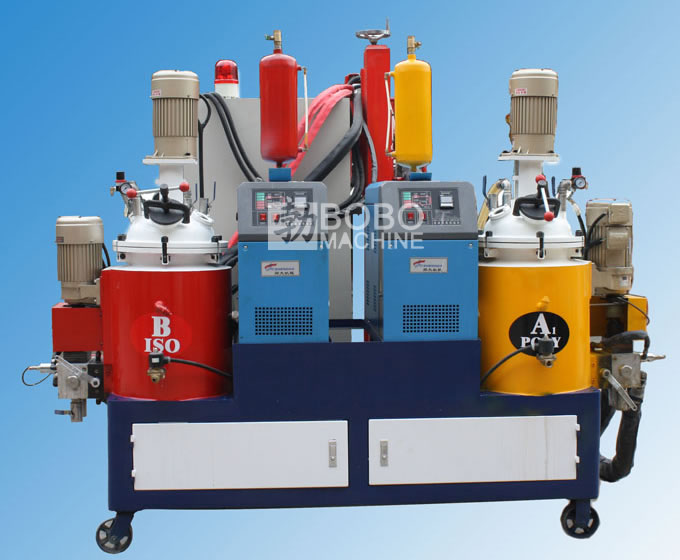

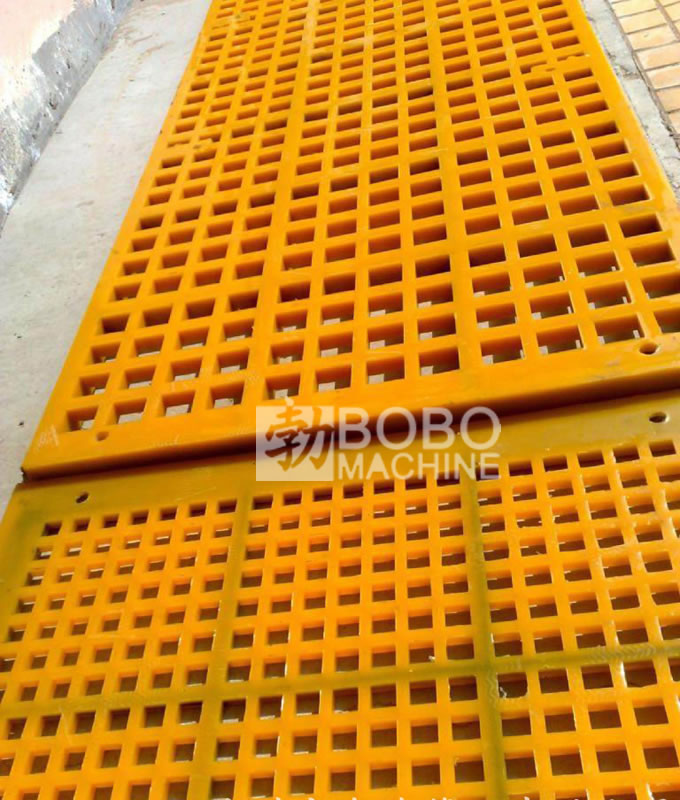

The PU elastomer foam pour machine manufactures high resilience, anti-abrasion products from MDI(Methylene Diphenyl Diisocyanate) and TDI (Toluene Diisocyanate) material. The equipped material tank is made entirely from stainless steel, complete with a vacuum and mixing system. The optimal heating temperature is kept at 80 to 130 degrees centigrade and typical products take the form of the PU wheel, screen mesh, and more. The PU Gasket Seal Machine ships with a one year parts warrantee.

Technical Specifications
Flux: 5~30kg per minute
Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues
PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
Equipped piston type counting pump: HJ30-50 (two), adjusting accuracy 0.05%.
Generating pressure: 8-10MPa (one 0.8 m³ air compressor is equipped by buyer)
Machine weight: about 300kg
Dimension: 1370mm x 1350mm x 2250mm
Equipped with heating system (A 80℃ B 130℃)

As a specialized PU elastomer PU Gasket Seal Machine manufacturer and supplier in China, we also supply flexible duct machine, filter core making machine, bolt and nut machine, and more.
