Wire Reinforced Aluminum Flexible Duct Machine

Home » Products » Pipe Duct Machine » Flexible Duct Machine » Wire Reinforced Aluminum Flexible Duct Machine

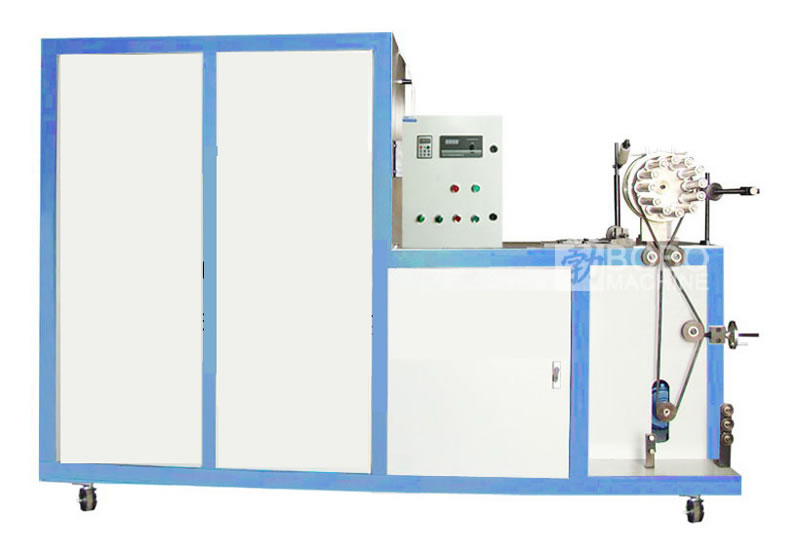

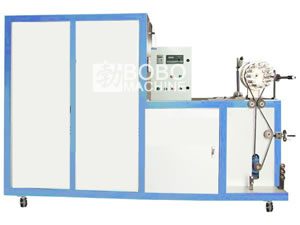

Wire Reinforced Aluminum Flexible Duct Machine

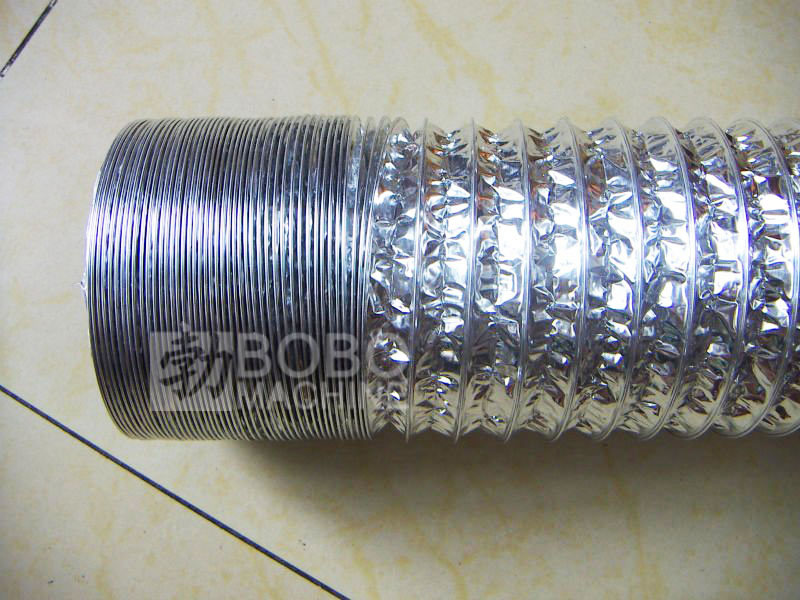

The wire reinforced aluminum flexible duct machine is utilized in the production of flexible aluminum foil duct and metallic plastic film with or without steel wire reinforcement. For the purpose of duct insulation, the one without wire reinforcement is usually employed for core duct functions while the one with wire reinforcement is used as an outer jacket. BOBO supplies all relevant equipment for insulation coating associated work. The machine comes with three sets of machinery with diameter of 300mm or less, free of charge. Necessary raw materials such as plastic film, aluminum film, steel wires and adhesives are provided accordingly, upon request.

Technical Specifications
Diameter range: 80mm~600mm
Length of aluminum tube: 1-10m
Main motor power: 1.5kW
Temperature: 40~120 centigrade
Electric heating power: 2.4kW
Working speed: 1-35 m/min, adjustable
Raw material: metalized PET film, 0.012mm, width 35-50mm
(or pure aluminum foil 0.025~0.035mm); Steel wire 0.8-1.4mm dia
Dimension (L x W x H): 2200 x 820 x 1550mm
Weight: 500kg

As a China-based wire reinforced aluminum flexible duct machine manufacturer, we also provide corrugated pipe machine, Polyurethane Spray Foam Machine, car wheel rim machine, and more.
