This product has been discontinued and removed from our shelves.

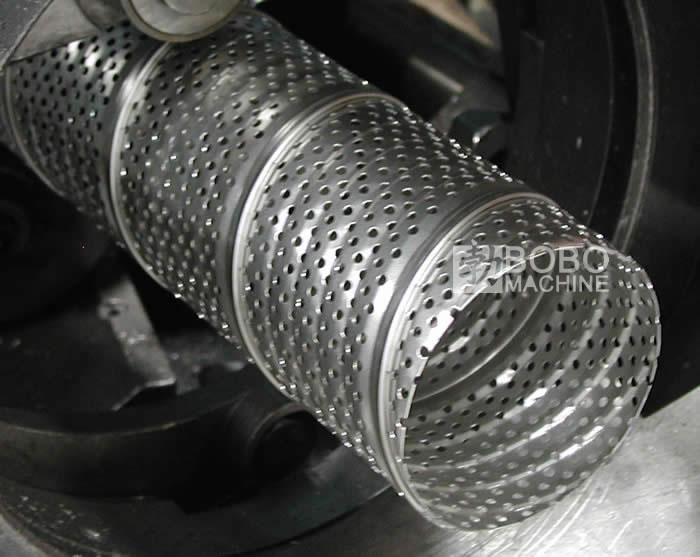

The filter core making machine produces the core tube for filtration applications such as automotive oil filter, fuel filter, water purification, and more. Its structure can be based on that of a perforated hole, expanded mesh, split gap, or other client requested specifications.

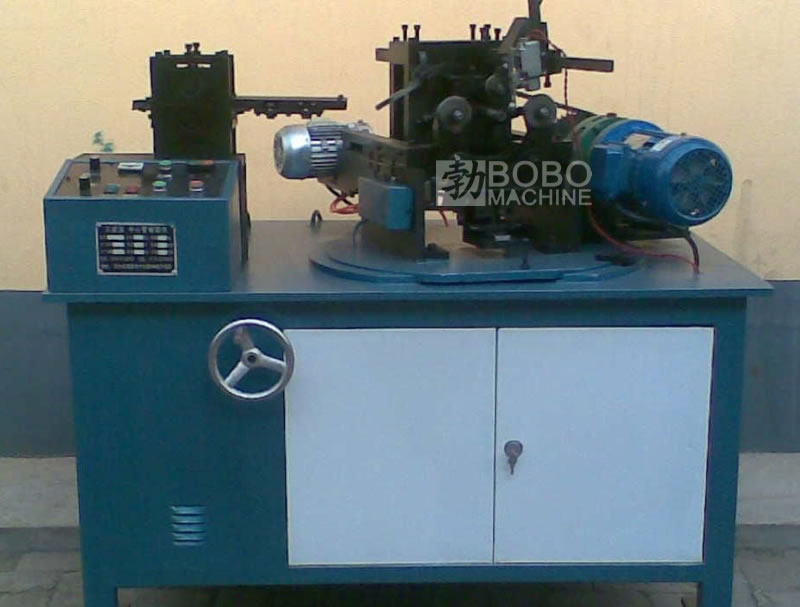

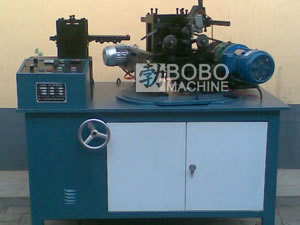

The filter core making machine SFF-150 is our recommended model for the production of filter for normal fuel and oil. Prior to feeding, The filter mesh has the option of retaining a perforated mesh or being slit and sheared online. The forming speed and cutting length can be finely calibrated via a precision control system and sensor. BOBO supplies the hole-perforating production line necessary for the filter core machine to maintain continuous operations. This machine ships with a one year parts warrantee.
Technical Specifications
Production capacity: 1.2 ~1.6 m/min
Diameter range of filter core: 38mm~150mm
Length of core: any, unlimited
Thickness of raw material: 0.20~0.32mm
Width of raw material: 45 mm
Motor power: 3kw
Dimension: 1300 x 1000 x 1400mm
Weight: 800kg

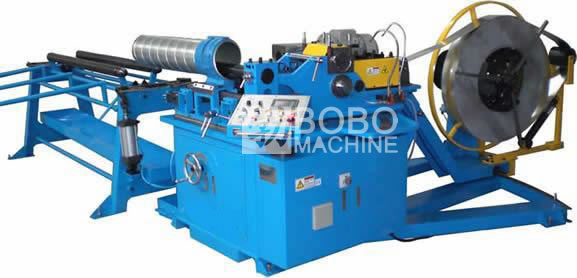

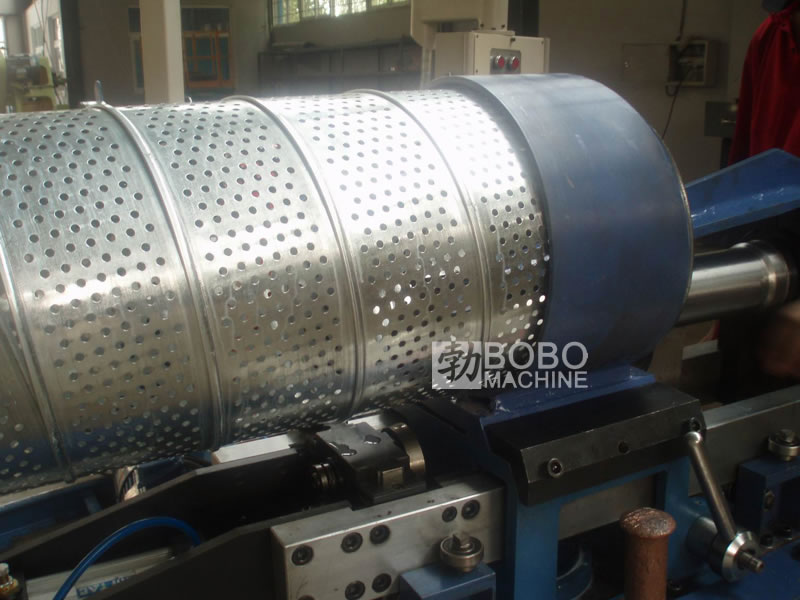

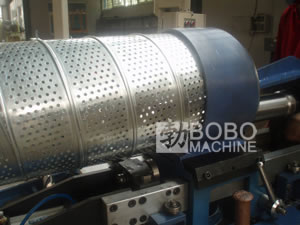

The filter core making machine SFF-600 is essentially a modified spiral air duct machine. It is optional for the close seam to be outside or inside, but the steel strip should be perforated prior to forming machine feed. The forming mold consists of casting steel and a fixed diameter, specifically designed for high quality filter core tube applications. The finished tube retains an ultra-smooth cutting surface after processed through a low noise slitter. BOBO supplies the full perforating production line in order to ready the filter core machine for continuous operations. This machine ships with a one year parts warrantee.
Technical Specifications
Diameter of round tubes: 100mm ~ 600mm.
Max. tube length: 3000mm.
Thickness of strip: 0.5 ~ 1.0mm
Width of strip: 137mm (can be customized)
Strip speed: 1~35m/min, adjustable
Suitable strip material: galvanized steel, mild steel, etc.
Motor power: 15kw
Weight: 2500kg

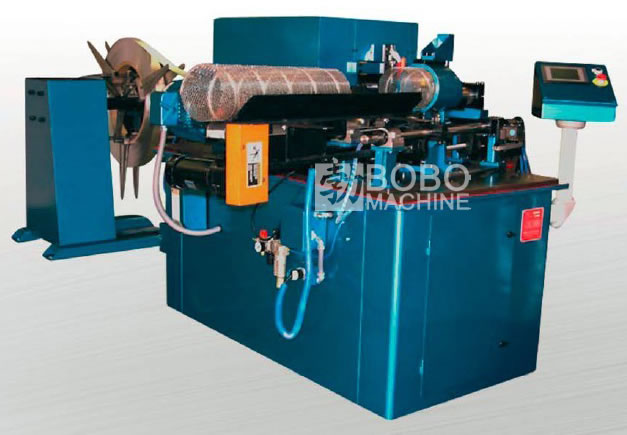

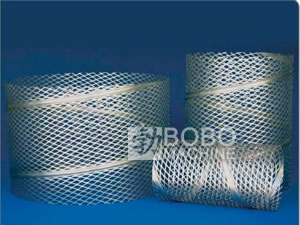

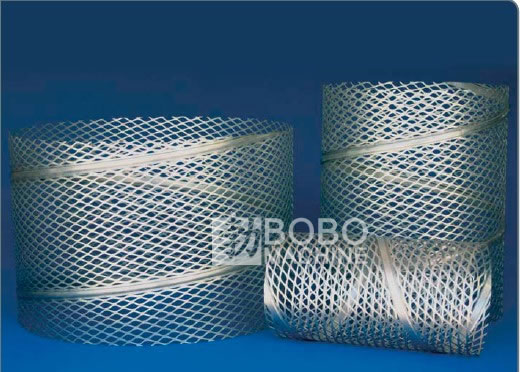

The filter core making machine SFE-500 is utilized in the formation of mesh filter from expanded metal mesh. Controlled by PLC and an inverter, the machine is fully capable of automatic operations including forming and cutting. An interlocked seam is present to ensure system stability as well as further reinforcing the implemented structure with improved rigidity. BOBO can provide the full production line required for the continuous operation of the machine. A one year parts warrantee is available with the purchase of every filter core making machine.
Technical Specifications
Filter core diameter: 80-500mm
Mesh strip thickness: 0.4-1.0mm
Mesh strip width: 138mm
Working speed: 6m/min, online cutting
Suitable material: galvanized steel, stainless steel, mild steel
Motor power: 4.0kw
Our company is a filter core making machine manufacturer in China. We offer a comprehensive range of products, including coal briquette press machine, bolt and nut machine, punch press machine, among others.
