This product has been discontinued and removed from our shelves.

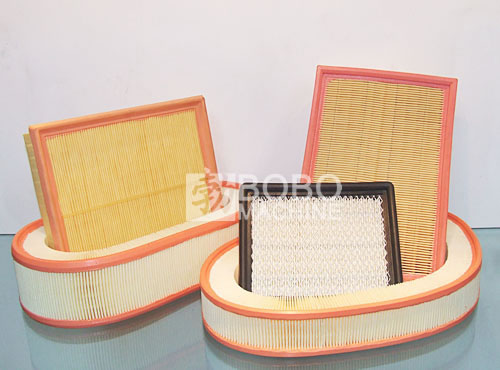

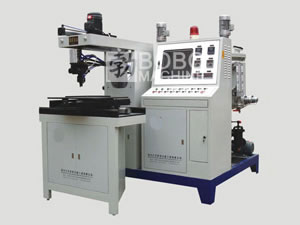

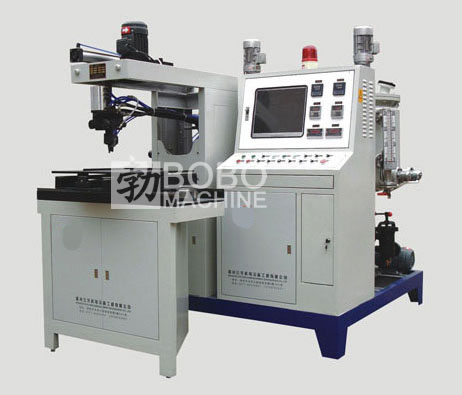

The PU air filter pouring machine is utilized in the production of foam seal for panel air filter commonly seen in car air filter and other industry filter applications. With a convenient number display and fully PLC enabled automation for flow capacity, pouring time, and moving track, the pouring machine is ideal for the efficient processing of round, rectangle, and specially shaped air filter seal. It is designed with a unique casting head for precision adjustment and a material tank equipped with stepless mixing. The on-board temperature control system ensures accurate measuring of materials. The associated X-Y axis rotary worktable is ideal for round, rectangle, or square shape processing. The table dimensions may be customized to tailor fit client specifications. BOBO is capable of supplying the raw material essential for PU seal applications. A one year parts warrantee is available with the purchase of this machine.
Technical Specifications
Flux capacity: 5-15g/s (based on ratio as A:B = 100: 25-35)
The casting head moving stroke: 450mm
Max. working size: 400x300mm (length x width), 350mm (diameter for round shape)
Worktable moving speed: 2-10m/min
Motor power: 8kw, 380V, 50Hz, 3Phase
Dimension: 1500x2000x2100mm (L x W x H)
Weight: 1000kg
Our company is a professional PU air filter pouring machine manufacturer in China. We offer a wide range of products, including PVC tablecloth making machine, punch press machine, car wheel rim machine, Polyurethane Spray Foam Machine, and much more.
