Expanded Filter Mesh Machine

This product has been discontinued and removed from our shelves.

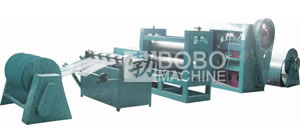

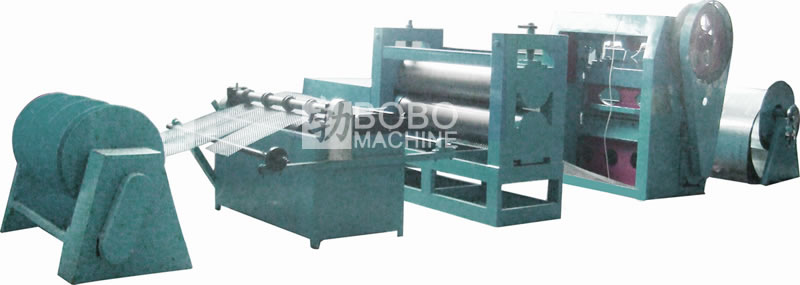

The expanded filter mesh machine punches metal sheet into metal screen for filtration applications such as air filter mesh cover, oil filter inner core, and more. The expanded metal mesh production line includes an uncoiling machine, a punching machine, a straightening machine, a slitting machine, and a recoiling machine. The mesh width and thickness are customizable upon client request and the mesh punching machine capacity will be recalibrated accordingly. BOBO offers a one year parts warrantee with the purchase of this model.

Technical Specifications

Capacity 6.3T 16T 25T 63T 125T
Sheet thickness ≤ 1.0mm ≤ 1.3mm ≤ 1.5mm ≤ 3mm ≤ 6mm
Sheet width ≤ 600mm ≤ 1000mm ≤ 1250mm ≤ 2000mm ≤ 2000mm
Stroke speed 250r/min 150r/min 150r/min 70r/min 45r/min
Feeding distance 0.1-0.3mm 0-10mm 0-12mm 0-3mm 3.5-7.0mm
Stroke 30mm 30mm 40mm 60mm 80mm
Capacity 1.6-13m/hour 2.7-5.4m/hour 3-6m/hour 2.1-12.6m/hour 4.2-8.4m/hour
Motor power 2.2kw 3kw 4kw 11kw 22kw
Dimension(mm) 1090x710x1450 1740x1400x1870 1740x1400x1870 3560x3300x2280 5940x3270x1925
Weight 1.2T 2.4T 3T 11T 12.5T

BOBO Machine is a professional expanded filter mesh machine manufacturer in China. We offer a wide range of products, including thread rolling machine, spiral duct machine, punch press machine, filter core making machine, and much more.
