Filter Mesh Roll Bending Machine

This product has been discontinued and removed from our shelves.

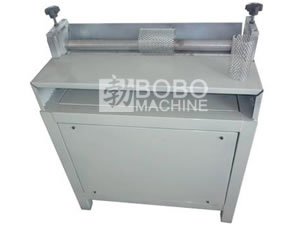

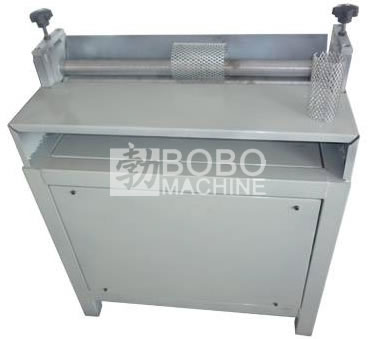

The filter mesh roll bending machine forms mesh screen into the round shape required by oil filter, fuel filter core or outer mesh cover. The roll bending operation is facilitated via two rollers with easily adjustable roller distance to accommodate variable thickness and radius. A parts warrantee is available wit the purchase of this machine.

Technical Specifications
Max. thickness: 1.0mm
Max. width: 300mm
Rolling diameter: 50-250mm
Capacity: 10 pics/min
Motor power: 1.0kw
Dimension: 800 x 600x900mm
Weight: 350kg

Our company is a specialized filter mesh roll bending machine manufacturer in China. Apart from CNC plasma cutting machine, we also provide Polyurethane Spray Foam Machine, waste paper baler, among others.

Related Names

Roll Bending Machine | Roll Bender
