Gantry Type CNC Plasma Cutting Machine

Home » Products » Machine Tools » CNC Plasma Cutting Machine » Gantry Type CNC Plasma Cutting Machine

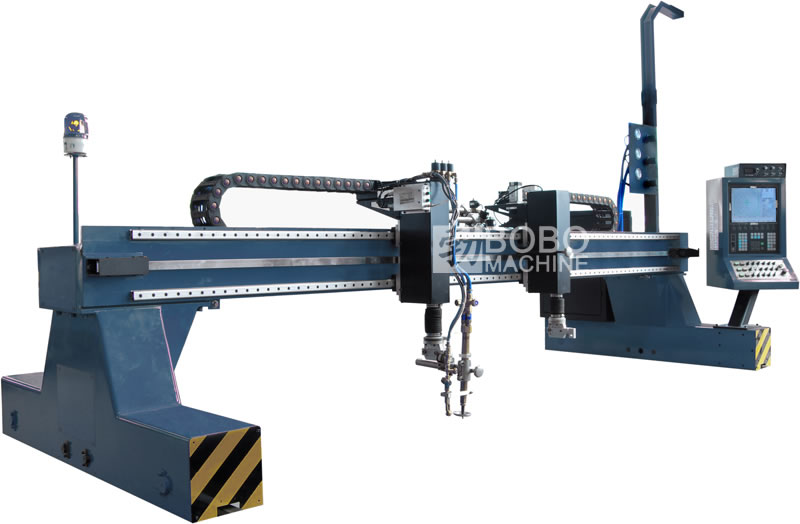

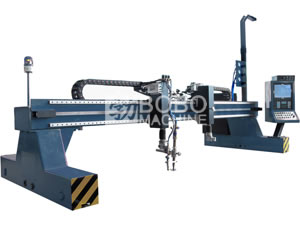

Gantry Type CNC Plasma Cutting Machine

System Configuration
Control system: JT-300 controller from domestic source
Driving system: AC servo motor, Panasonic, 750W + 200W
Driving method: Single side
Decelerators: two sets, NEUGUET from Germany
Linear leading rail: ABBA from Taiwan
Plasma power: Powermax from Hypertherm, USA.
Capacitor height adjusting system: from domestic source
LCD 15" from domestic source

Technical Specifications
Cutting thickness: Based on plasma power source
Max. no-loading speed: more than 10000mm/min
Cutting speed: 50-5000mm/min
Cutting accuracy: +/- 0.5mm (whole stroke)
Re-positioning accuracy: +/- 0.2mm
Power supply: 380V, three phase, 50Hz
Total power: 2kW

As a professional gantry type CNC plasma cutting machine manufacturer in China, our company also provides car wheel rim machine, air filter hot press machine, corrugated pipe machine, and more.
