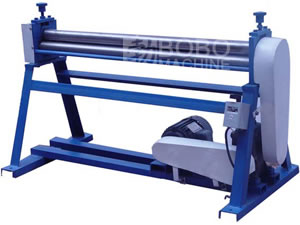

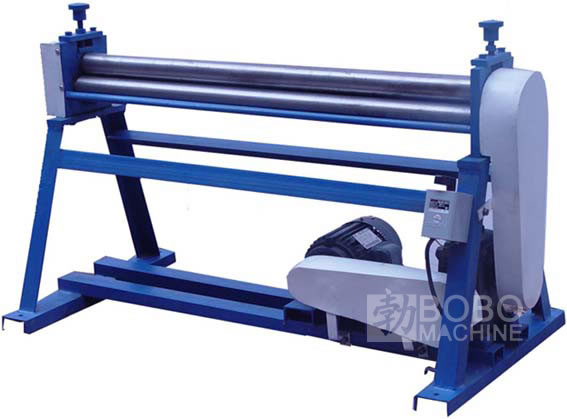

Roll Bending Machine

The roll bending machine is mainly utilized in the formation of a round piece through the rolling of a segment, in preparation for the seam welding process. The bending roller itself is made from high integrity steel with quenching and heat treatment designed for tough, prolonged use. The machine system may be manual, electrical, or hydraulic to accommodate variable sheet metal thickness and width. The actual machine working height may be customized according to client request.

Technical Specifications
Model: W11G1.5x1300
Max. Sheet thickness: 1.5mm
Max. Sheet width: 1300mm
Yield limit: 245MPa
Minimum rolling diameter in full capacity: 100mm
Diameter of upper roller: 72mm
Diameter of lower roller: 72mm
Motor power: 380V, 50Hz, 3 phase, 1.1Kw
Weight: 224kg
Dimension: 1800 x 550 x 1170mm

Our company is an experienced roll bending machine manufacturer and supplier in China. We offer a variety of products, including Polyurethane Spray Foam Machine, filter core making machine, car wheel rim machine, and more.
