Foam Molding Machine

This product has been discontinued and removed from our shelves.

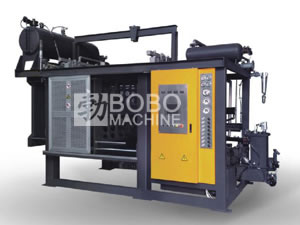

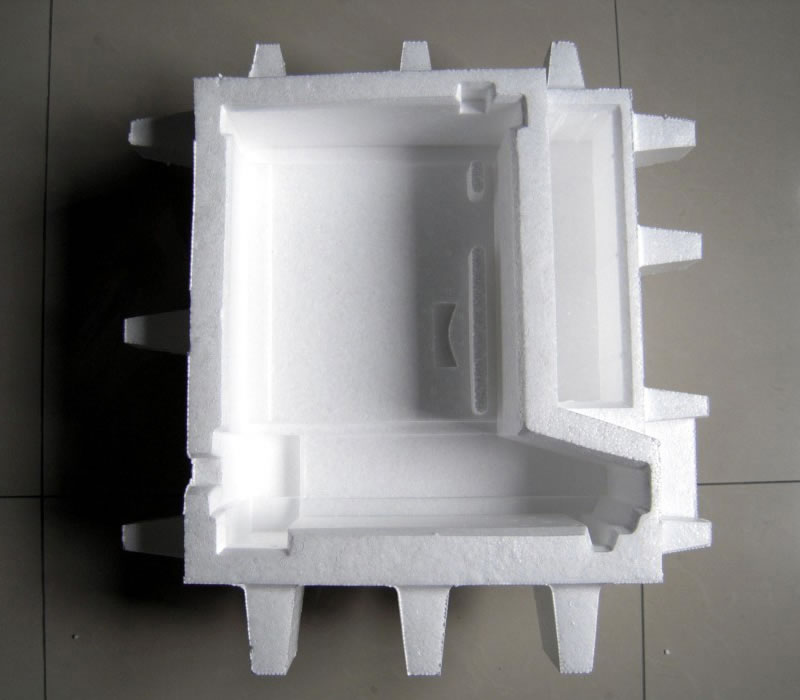

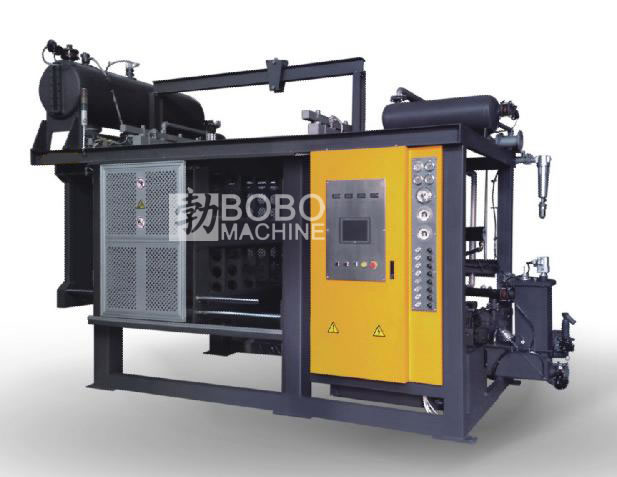

The foam molding machine is utilized for the formation of EPS (Expanded Polystyrene) foam in various unique shapes commonly seen in applications such as foam package, foam block, and more. Fitted with an advanced PLC control system, the machine is capable of high precision injection molding flow capacity. BOBO provides designer mould as per client sample or drawing specifications. In comparison with traditional machines, the newly engineered vacuum molding machine saves over 40% steam consumption and clearly indicates the amount of expended steam for each cycle with great precision. With an improved efficiency rating of over 20%, the machine is capable of continuous operation even as the main steam pipe pressure approaches 1.5kg.

Technical Specifications
Mould Dimension:L×W(mm) 1750X1400
Mould Stroke: 50-1200mm
Steam Connection: DN 100
Compressed Air Connection: DN 50
Cooling Water Connection: DN 100
Condensate Connection: DN 80
Material Connection: R 2''
Drainage Outlet: DN 160
Hydraulic Opening Pressure Bar: (High+Low) 210+70
Filling System: Max Outlet for Filler 34 pieces
Hopper unit: one pic
Volume: 160Liter
Electrical Capacity:16.1kw
Machine Dimension: Length 5580 x Width 4250 x Height 5340 mm
Machine Weight: 8100kg

As a China-based foam molding machine manufacturer and supplier in China, BOBO Machine also provides duct flange machine, corrugated pipe machine, waste paper baler, and more.
