Circular Foam Cutting Machine

Home » Review » Circular Foam Cutting Machine

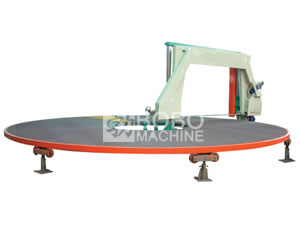

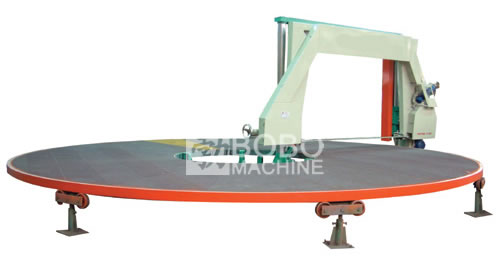

Circular Foam Cutting Machine

This product has been discontinued and removed from our shelves.

The multiple-wire CNC circular foam cutting machine is capable of handling materials with either small volumes or large quantities. After the on-board computer processes provided graphics, the resistance wire cutting system utilizes all 20 wires simultaneously in a parallel arrangement for the precision cut of 20 separate complex 3D shapes in one sitting.

Technical Specifications
Max.product size: 2000x1500x1200mm
Cutting thickness: 2-150mm
Worktable turning speed: 0-3.5r/min
Worktable diameter: 6m
Dimension: 7000x6500x2500mm

Our company is an experienced circular foam cutting machine manufacturer in China. We also provide Polyurethane Spray Foam Machine, filter core making machine,car wheel disc machine, and more.
