Pneumatic Polyurea Spray Machine BDF-X

Home » Products » Polyurea Spray Machine » Pneumatic Polyurea Spray Machine BDF-X

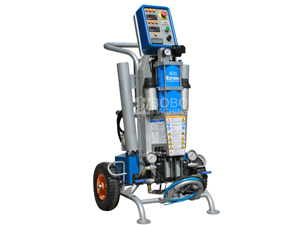

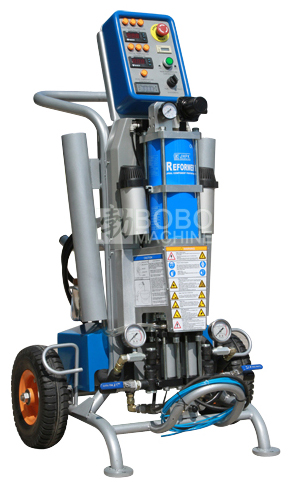

Pneumatic Polyurea Spray Machine BDF-X

This newest pneumatic polyurea spray machine BDF-X can be applied to various of construction situations, and it is suitable for multiple double component materials, such as polyurea elastomer, polyurethane all-water foam, polyurethane foam material, polyurethane adhesive and sealants. Compared with the model of BDF-V, this ultrahigh pressure foam spraying machine is more compact with better cost performance.

Main Technical Data
Model BDF-X
Max. flow capacity 2-8kg/min
Viscosity range 200-1000CPS
Mixing ratio 1:1, fixed ratio
Heating power 4500W*2
Heating temperature range 0 ℃ ～ 90 ℃
Power source 3-phase, 4-wires
Air source 120psi 1.2m3/min
Output pressure 9-18Mpa
Dimension 930x800x1210mm
Weight 125KG
Standard configuration Main machine, one set Feeding pump, two pieces Spray gun, one piece Gun connection hose 2m, one set Heating hose 15m, one set
