Home » Products » Wheel Machine » Cycle Wheel Rim Machine » Alloy wheel rim machine

The alloy wheel rim machine is a production line that mainly consists of a rolling machine, cutting machine, pin inserting machine, side lathing machine, hole punching machine, surface polishing machine, nipple feeding machine and tire mounting machine. These machines have seen widespread use by the Chinese and Taiwanese domestic industry for over 20 years. Tried-and-true technology born from experience and solid groundwork is what guarantees a superb system fine-tuned for exceptional performance and dependable stability. BOBO provides a one year parts warrantee with the purchase of the alloy wheel rim machine.

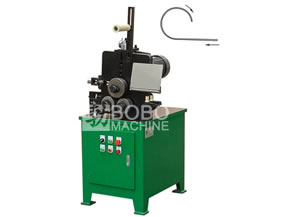

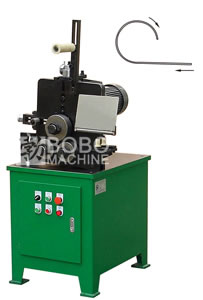

Technical Specifications
Type: BO-A001
Motor power/Consumption: 380v 3p 2.2kW
Capacity:600 PCS/HR
Dimension: 900 x 750 x 1650mm
Weight: 350 kg
Rim Size: 12"-28"

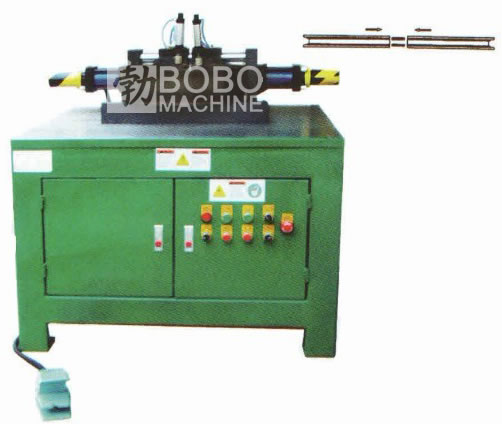

Technical Specifications
Type: BO-A002
Motor power/Consumption: 380v 3p 3.7kW
Capacity: 600 PCS/HR
Dimension: 1650 x 1050 x 1750mm
Weight: 1050kg
Rim Size: 12"-28"

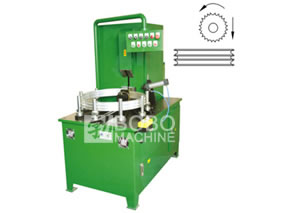

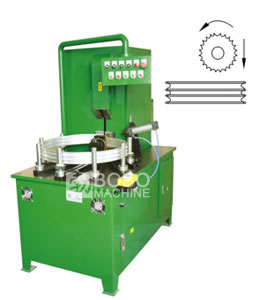

Technical Specification
Type: BO-A003
Motor power/Consumption: 380v 3p 2.2kW
Capacity: 400PCS/HR
Dimension: 1200 x 1000 x 1200mm
Weight: 500kg
Rim Size: 12"-28"

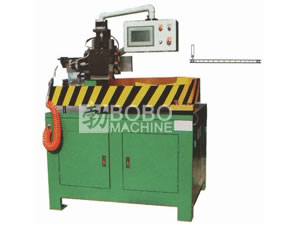

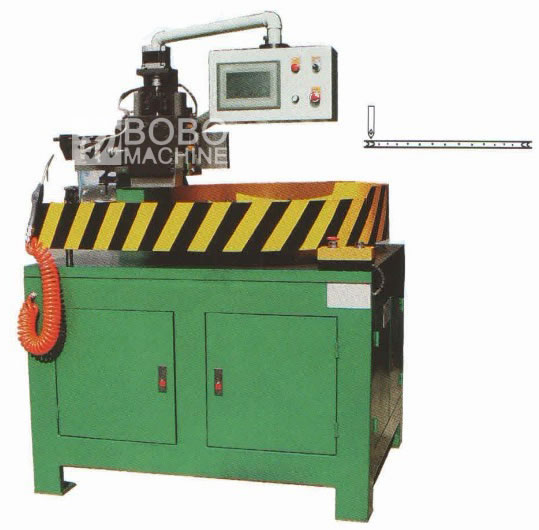

Technical Specifications
Type: BO-A004
Motor power/Consumption: 380v 3p 5.5kW
Capacity: 600PCS/HR
Dimension: 1800 x 1800 x 1450mm
Weight: 1200kg
Rim Size: 12"-28"

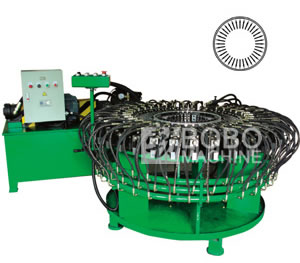

Technical Specification
Type: BO-A005
Motor power/Consumption: 380v 3p 11kW
Holes: 16H,20H, 28H, 36H, Valve Hole
Capacity: 700PCS/HR
Dimension: 2400 x 1600 x 1450mm
Weight: 2200kg
Rim Size: 12"-28"
