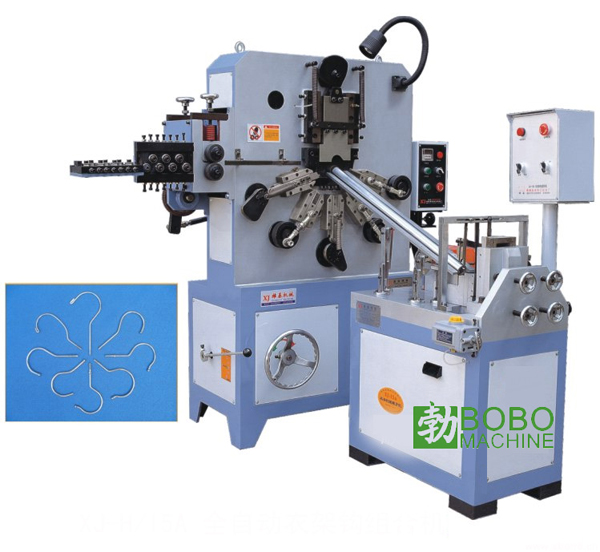

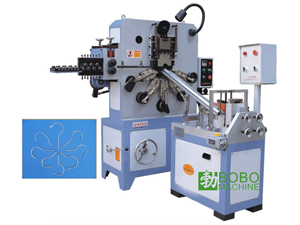

Cloth Hanger Hook Making Machine

Cloth Hanger Hook Making Machine

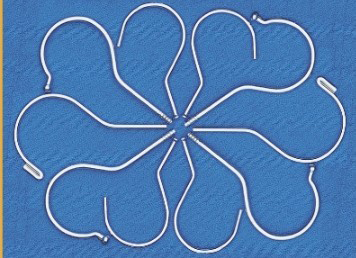

The Cloth Hanger Hook Making Machine is suitable for processing iron wire, steel wire, stainless steel wire and non-ferrous metal wire, that can be made into all kinds of flat form, simple three-dimensional shape and all kinds of buckle, etc.
1. This coat hanger machine has functions of output setting and automatic controlling.
2. This hook making machine can be used to produce buttons.
3. Mechanical and pneumatic conveying ways are available.
4. Three kinds of speed is optional, they are 20times/min, 40times/min and 60times/min.
5. The wire hanger machine has hand rotation function, that guarantees the calibration effectively and conveniently.
6. The oil is pumped manually into all lubricating points, which can avoid abrasion of the parts.


Main Technical Data

Model Wire Diameter(mm) Wire length(mm) Speed (pcs/min) Power(kw) Other
BO-QH5 φ1.5 ～ φ5 ≤300 40 ～ 60 2.2
BO-QH7 φ1.5 ～ φ7 ≤380 40 ～ 60 3.0
