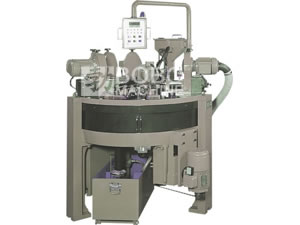

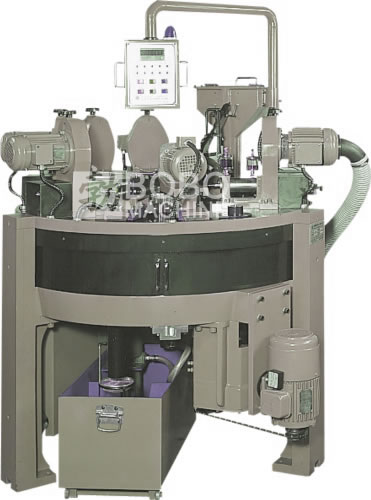

Cycle nipple making machine

The automatic cycle nipple making machine is utilized for the drilling and tapping of various spoke nipples. It is capable of automatic and precise functions such as milling flutes, continuous tapping, the storing, feeding, and removal of material. It can also drill holes such as center hole, macro pore, or small opening. BOBO offers a one year parts warrantee with the purchase of this machine.

Technical Specifications

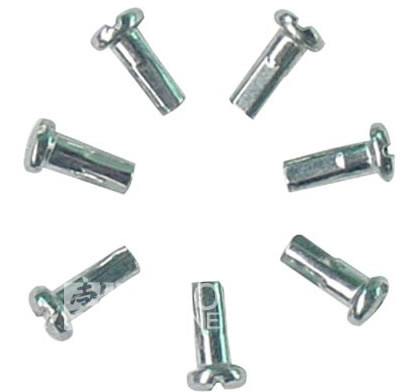

Spoke nipples specification 15G, 14G, 13G, 12G, 10G
Rotate speed of axis of rotation in gear wheel box N=169T/MIN
Rotate speed of equal division plate N=3.5T/MIN
Production ability Processing 14G, 13G, 15G Processing 12G, 10G
Capacity 16800pcs (25pcs/min)
Main electromotor model: Y9DS4(vertical) 1.1kw N=1410T/MIN
Electric pump model:DB25A N=2760T/MIN
Occupy area 1285MM*1040MM=1.3M2
Weight 1200Kg

As a China cycle nipple making machine manufacturer and supplier, we provide various types of products such as chain welding machine, rotary swaging machine, Polyurethane Spray Foam Machine, and Packaging Foam Machine.
