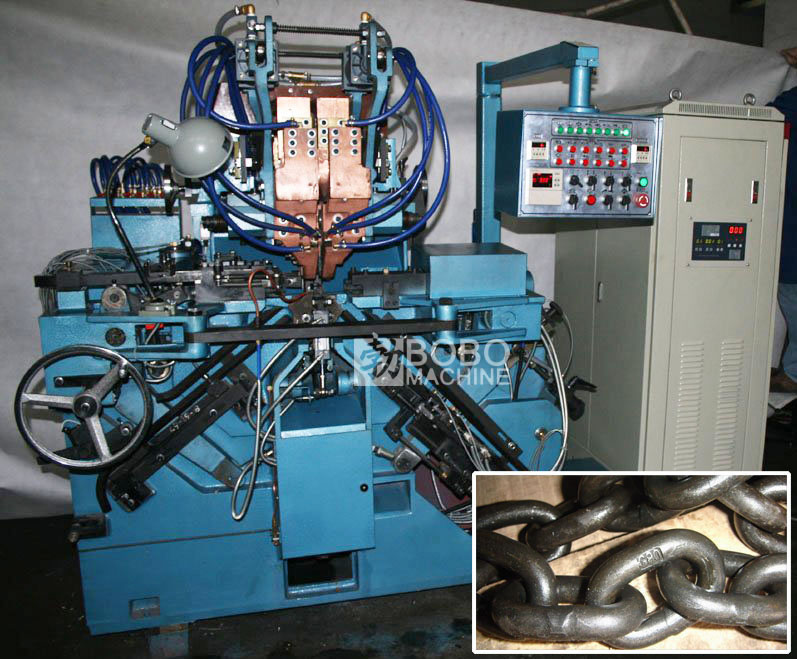

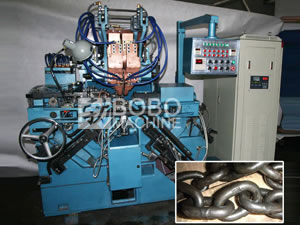

Iron Chain Welding Machine

The iron chain welding machine is a hybrid contraption that represents the successful combination of advanced German technology with our own research efforts. For welding purposes, the machine utilizes a secondary resistance electrifying method to facilitate chain conveying, rotating, welding, forging, trimming, and other associated functions. It is controlled through a PLC system that provides stable performance, convenient maintenance, and fault protection safeguards. The chain welding machine may be operated in manual, inching, semi-automatic, or fully automatic modes.

Technical Specifications
Suitable wire diameter: 14-18mm
Chain pitch: 3.0~ 5.0 times of wire diameter
Productivity: 15-25 rings/min
Rated capacity: 300KVA, 50Hz
Secondary voltage: 8 grade
Motor capacity: 7.5KW, 1450rpm speed
Pneumatic pressure: 0.6MPa
Air consumption: 12L / cycle
Cooling water consumption: 30L/min, min. degree 15 centigrade.
Machine dimension: 3300 x 1750 x 2550mm
Machine weight: about 13.8Ton

As a major iron chain welding machine manufacturer in China, we also provide duct flange machine, spiral duct machine, metal chip briquetting machine, and flexible hose machine, among others.
