Spiral Duct Making Machine

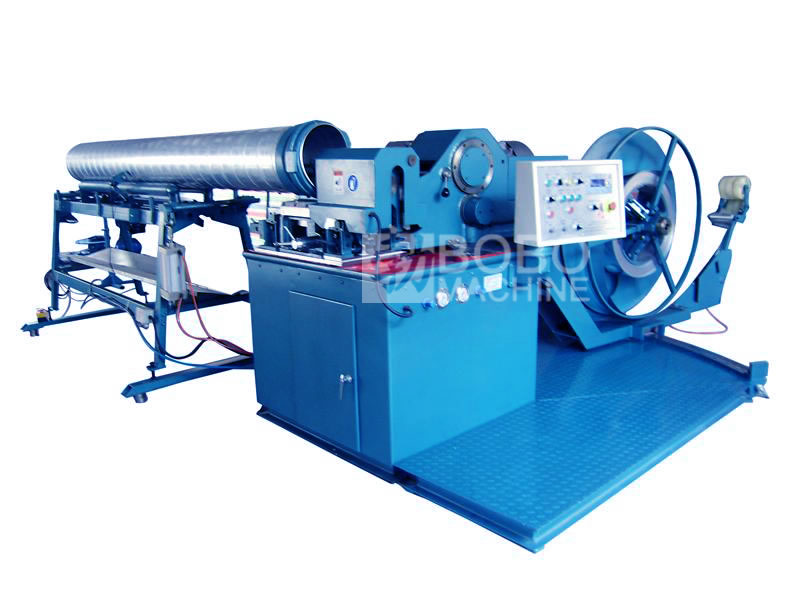

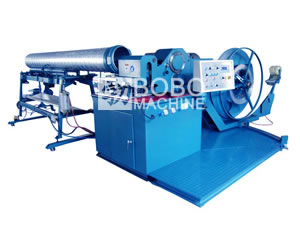

The BTF-II model is a state-of-the-art spiral duct making machine that features an ultra-light, special duct mould and guarantees a long service life. By utilizing fixed-diameter mould and a rotary slitter cutting system, the machine is user-friendly and capable of ultra-smooth cutting operations with minimal noise. The adjustable large diameter ranges in between 1600mm to 2000mm. Included with the purchase of this duct making machine is a spare forming roller, a cutting blade, essential electric parts, and three sets of mould under 300mm in diameter. Complete with an auto-unloading rack, BOBO helps you cut down on labor costs. The control panel consists of PLC control and is a traditional button interface by default, but may be upgraded to a touch screen at extra charge.

Technical Specifications
Suitable material: Galvanized steel strip
Strip thickness: 0.4 ~ 1.2mm
Strip width: 137mm
Diameter range: 100mm ~ 1600mm
Strip feeding speed: 1~35m/min, adjustable
Motor power: total 15.5KW
Dimension: 3600mm x 2800mm x 2280mm
Weight: 2650kg

As a specialized spiral duct making machine manufacturer and supplier in China, we also provide Polyurethane Spray Foam Machine, filter core making machine, car wheel rim machine, and more.
