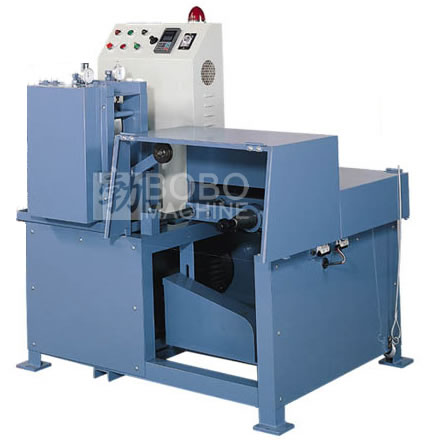

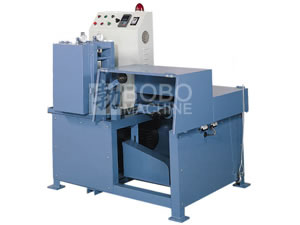

Outer Casing Wire Flattening Machine

The outer casing wire flattening machine is used for the flattening of a round wire into the desired shape. With a crane lifting device, it is simple and convenient to unload the steel wire bobbin. BOBO supplies two bobbins that ensure continuous work and a long service life. Equipped with a Mitsubishi inverter for working speed calibration, precision is guaranteed. A water cooling system for improved performance and stability is optional and available at the client's request.

Feature
Pressing roller is made from Cr12Mov, with heat treatment HRC≥59º
Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
Equipped with auto alarm and emergency stop function for wire feeding control
Equipped with straightening device for wire feeding
Equipped with water cooling system (Optional device).

Technical Specifications

Model WF-200 (WF-200C) WF-250 (WF-250C)
Max. wire diameter 1.7mm 2.5mm
Wire output speed >1.2m/s >1.5m/s
Pressing roller diameter 200mm 250mm
Wire flattening tolerance ≤±0.01mm ≤±0.01mm
Bobbin capacity 100kg 100kg
Motor power 3.0kw 5.5kw
Crane device No Yes

BOBO Machine is a specialized outer casing wire flattening machine manufacturer based in China. Our company also supplies corrugated pipe machine, duct flange machine, metal chip briquetting machine, CNC plasma cutting machine, and much more.
