Outer Casing Winding Machine

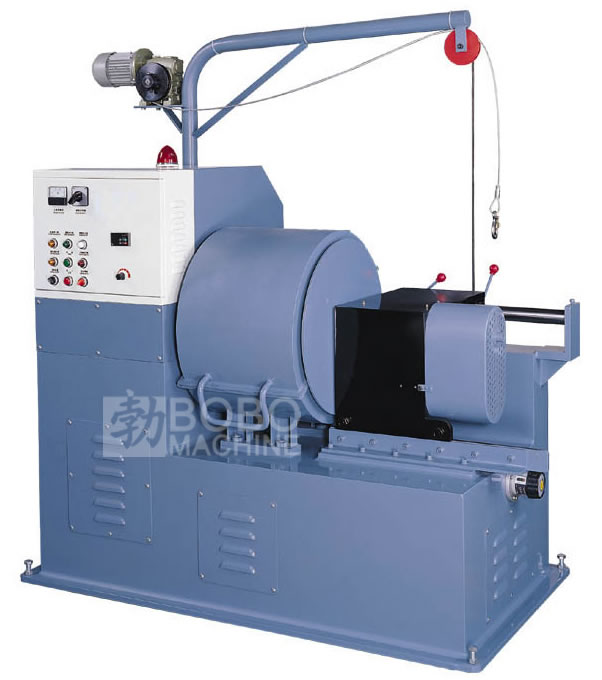

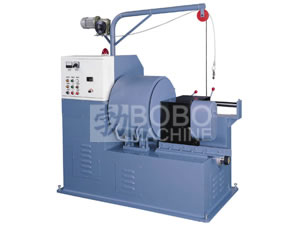

The outer casing winding machine is used in the formation of the outer casing conduit via the spiral winding process. Key components such as the inverter are imported from highly reputable brands like Mitsubishi to ensure quality performance. The winding unit is well covered during normal operations for safety. It works fully automatically with an on-board emergency stop function and alarms that sound off in the event of absent wire feeding or inner hose feeding. The feeding device may be toggled between "Manual" and "Automatic". This machine is equipped with an electric crane for wire bobbin lifting and comes with a parts warrantee.



Technical Specifications

Model FX-1 FX-2 FX-3
Flexible hose diameter 4-6mm 7-11mm 12-22mm
Forming speed 2.2m/s 2.6m/s 3.0m/s
Crane capacity 120kg 120kg 120kg
Motor power 3.75kw 3.75kw 3.75kw
Dimension 2200x900x2000mm 2200x1000x2100mm 2300x1100x2200mm
Weight 1300kg 1500kg 1800kg

We are a professional outer casing winding machine manufacturer and supplier in China. We offer a vast range of products, including Polyurethane Spray Foam Machine, cycle wheel rim machine, filter mesh expanding machine, among others.
