Pittsburgh Lockformer

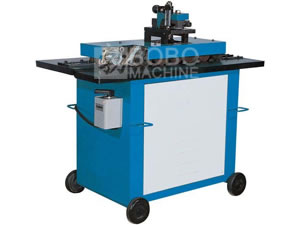

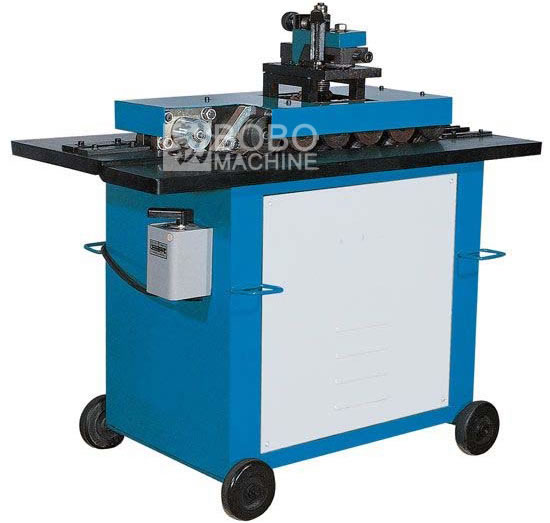

The Pittsburgh lockformer LC-12DR is mainly used to form the profile required for rectangle air duct connection. Widely recognized as the best performing machine for rectangular and square air duct work, the lock forming profile is capable of six different kinds of variations, including the most commonly used ones. BOBO supplies the machine with bottom snap profile, S profile and other specially designed profiles. Designed with portable wheels, the machine is easy to maneuver on a worksite. Due to popular demand, the Pittsburgh lock former is always in stock and can be delivered within 5-7 days.

Technical Specifications
Capacity of the sheet: 0.5mm~1.2mm
Profile: Six kinds of lock profiles
Motor Power: 1.5KW
Dimension: 1040*600*1100mm(L*W*H)
Weight: 210KG

We are a Pittsburgh lockformer manufacturer and supplier in China. We also provide wheel testing machine, waste paper baler, spiral duct machine, steel ball making machine, and more.
