Duct Seaming Machine

Home » Products » Pipe Duct Machine » Rectangle Duct Machine » Duct Seaming Machine

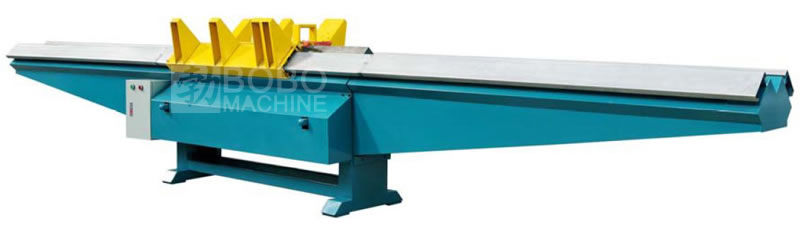

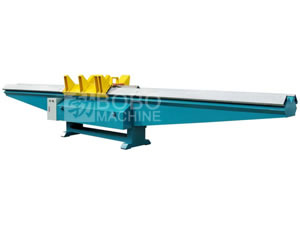

Duct Seaming Machine

The duct seaming machine or duct zipper machine is used to automatically seal rectangular air duct seams. The machine supports ducts of all sizes and shapes with a height not exceeding 27 inches or 700mm. An exceptionally productive "in-line design" moves through the machine along with the duct work. After the completion of one seam, the operator simply shifts the duct crosswise onto the material guidance system and slides it back to the entry point. This process is capable of saving a second operation and is extremely simple and effective.

Technical Specifications
Model: RS-10
Suitable thickness: 0.5-1.0mm
Min. duct size: 100 x 100mm
Max. working speed: 15m/min
Working height: 800mm
Motor power: 5.5kw
Weight: 710kg

We are a professional duct seaming machine manufacturer and supplier in China. We provide a variety of products, including PVC tablecloth making machine, filter core making machine, stainless steel flatware machine, Polyurethane Spray Foam Machine, among others.
