Flange Forming Machine

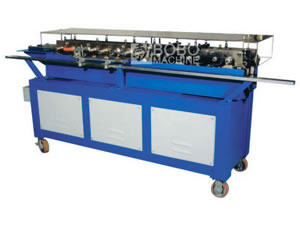

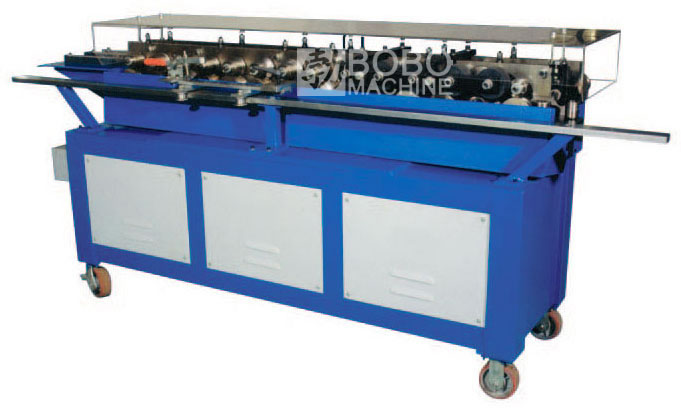

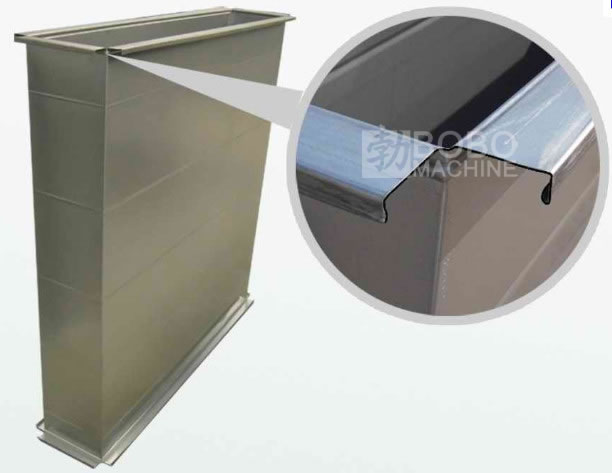

The TDF flange forming machine is capable of producing the signature TDF flange and the duct clip for rectangular or square air duct fabrication. All the forming rollers are quenched and heat treated for improved structural integrity. The machine is portable for convenient maneuverability around a worksite. BOBO offers a one year parts warrantee with the purchase of this machine.

Technical Specifications
Model: T-12
Work thickness: 0.8-1.2mm
Flange height: 35mm
Motor power: 4kw
Dimension: 2800x700x1000mm
Weight: 1400kg.

As a professional flange forming machine manufacturer and supplier in China, we also offer CNC plasma cutting machine, bolt and nut machine, Polyurethane Spray Foam Machine, chain welding machine, and much more.
