Forward Push Type Scrap Metal Baler

Home » Products » Scrap Baler » Scrap Metal Baler » Forward Push Type Scrap Metal Baler

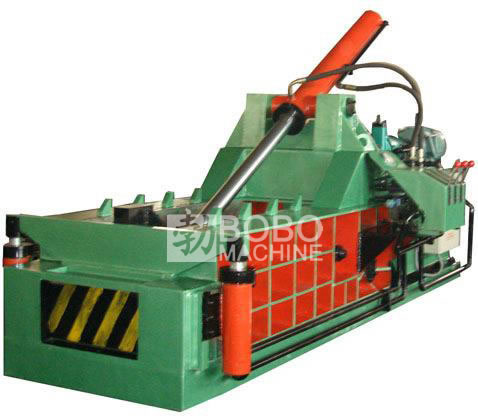

Forward Push Type Scrap Metal Baler

The forward push type scrap metal baler processes compressed bale from a frontal orientation via powerful hydraulic pushing. The machine undergoes a two-time compression, ideal for fixed length, low density bale. This unit ships with a one year parts warrantee and is packed in a sturdy steel frame or wooden case for added protection during transport. Customized exterior paint and OEM service is available upon client request.





Technical Specifications

NO Model Pressure Chamber size Bale section Power Operation
1 Y81Q-100 1000KN 1100×600×550mm 600×220mm 15kw manual
2 Y81Q-135A 1350KN 1400×600×600mm 600× 240mm 22kw
3 Y81Q-160 1600KN 1450×600×600mm 600×300mm 22kw
4 Y81Q-200 2000KN 1450×700×700mm 700×350mm 37kw
5 Y81Q-230 2300KN 1800×750×700mm 750×350mm 37kw

As a specialized forward push type scrap metal baler manufacturer and supplier in China, we also offer car wheel rim machine, air filter pouring and injection machine, steel ball making machine, among others.
