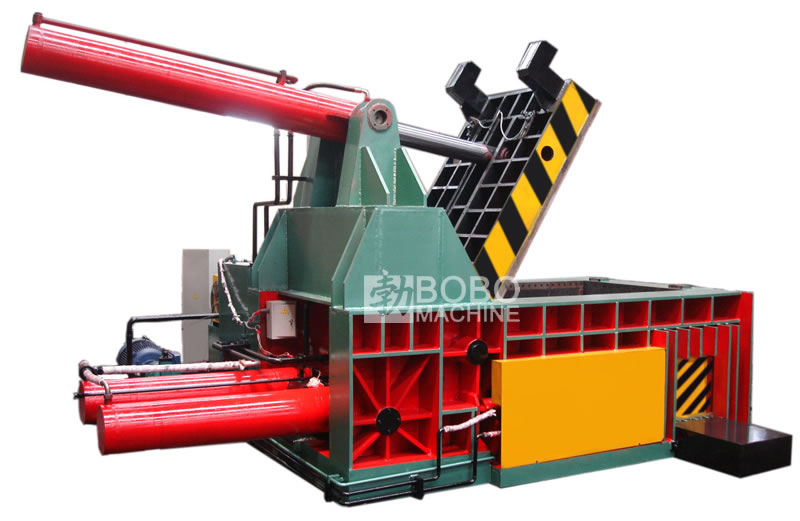

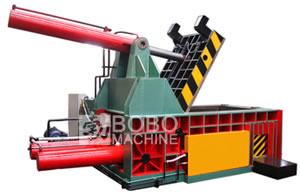

Side Push Type Scrap Metal Baler

The side push type scrap metal baler processes compressed bale in a sideways orientation via powerful hydraulic pushing. The machine undergoes a three-time compression and provides more stability with less stoppage. This unit ships in a sturdy steel frame or wooden case for added protection and comes with a one year parts warrantee. Customized exterior paint and OEM service are available upon client request.





Technical Specifications

NO Model Pressure Chamber size Bale section Power Operation
1 Y81Q-100 1000KN 1100×600×550mm 600×220mm 15kw manual
2 Y81Q-135A 1350KN 1400×600×600mm 600×240mm 22kw
3 Y81Q-160 1600KN 1450×600×600mm 600×300mm 22kw
4 Y81Q-200 2000KN 1450×700×700mm 700×350mm 37kw
5 Y81Q-230 2300KN 1800×750×700mm 750×350mm 37kw

As a professional side push type scrap metal baler manufacturer in China, our company also provides bolt and nut machine, filter mesh expanding machine, coal briquette press machine, and more.
