PortuguêsLow Pressure Polyurethane Foam Injection Machine, Scrap Baler, Pipe Duct Machine, Wheel Machine, Filter Making Machine

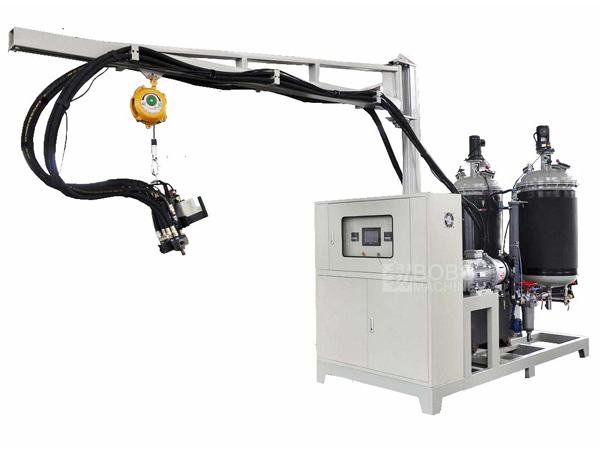

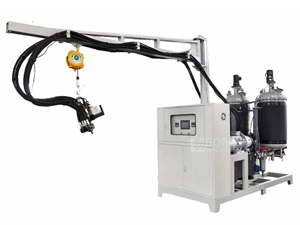

The Low Pressure Polyurethane Foam Injection Machine is most ideal for resilient foam product, integral skin foam product, high density foam product, and other similar products. The default control system is based on the PLC interface, but a time relay control interface is also available as an option. Equipped with a secondary mixing device, the injection machine guarantees even element mixing. BOBO can supply raw materials including Poly and ISO with the purchase of each machine. This unit comes with a one year parts warrantee. Customizable exterior paint, flow capacity, tank storage capacity, and OEM service are available upon client request.

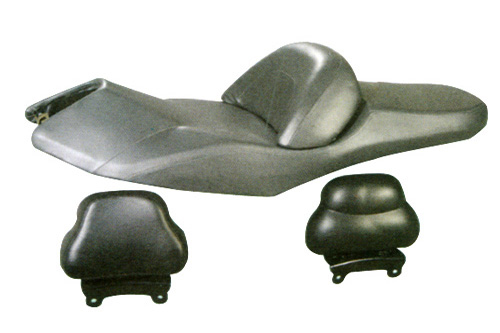

Low pressure polyurethane foam injection machine is widely used for continuous foam injection, and different kinds of foam products making, like pillows, mattress, shoes, decorative foams, float, seats and sandwich panel, etc.
This injection moulding machine is controlled by PLC, and features of high accuracy, simple operation, and convenient maintenance. It can be cleaned itself automatically, which saves a lot of time after the production is done.
Main Technical Data| No. | Item | Data |
| 1 | Rated power | 30 kW |
| 2 | Temperature control power | 2*9 kW |
| 3 | Arm | 2.3 meters long |
| 4 | Output flux | 50g /s-100kg/s (optional) |
| 5 | Tank capacity | 30L , 50L, 250L (optional) |
| 6 | Control system | PLC programmable |
| 7 | Heating type | Automatic |
| 8 | Cleaning type | Automatic |
| 9 | ISO measuring pump | JLB-28 |
| 10 | Mixing system rotation speed | 2800-5000 r/min |
| 11 | Motor power | 380V, 50HZ, 3 phase, can be customized |
| 12 | Arm type | Mechanical or pneumatic |
| 13 | Dimension | 4100x1250x2300mm (arm included) |
| 14 | Weight | 1350kg |
As a specialized Low Pressure Polyurethane Foam Injection Machine manufacturer based in China, BOBO Machine also supplies circular shear, bolt and nut machine, punch press machine, and more.
