Polyurethane Spray Foam Machine BDF-IV

Home » Products » PU Foam Machine » Polyurethane Spray Foam Machine » Polyurethane Spray Foam Machine BDF-IV

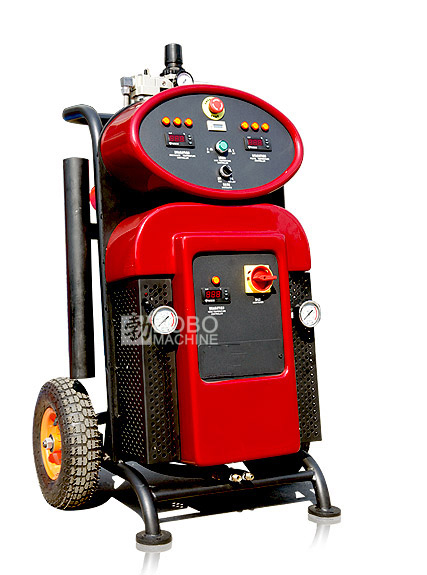

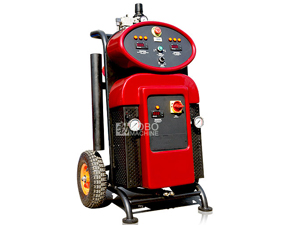

Polyurethane Spray Foam Machine BDF-IV

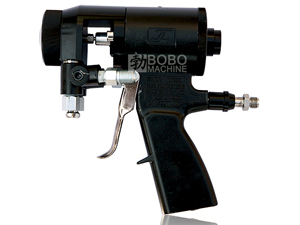

With same features as BDF-II polyurethane spray foam machine, the BDF-IV is used for wall and roof thermal insulation, sound insulation foam spraying, it also can be used for foam pouring of cold room panel, freezer panel, and the solar water heater tank, etc. Compared with the basic model of BDF-II, the BDF-IV is more powerful with strong heating system, and the maximum length of heating hose reaches 90m. Also we will supply the necessary spare parts for the foam spraying machine and the spray gun is free of charge at least one year of use.

Main Technical Data
No. Description Data
1 Flux capacity 4-10Kg/min
2 Max. material temperature 80 centigrade
3 Mixing pressure 5-10MPa
4 Heating capacity 9.5KW
5 Max. heating hose length 90meter
6 Driving method Pneumatic driven with air compressor
7 Electric power system 380V, 50/60Hz, 3Phase (can be customized)
8 Package dimension 800x700x1250mm
9 Gross weight 157Kg
