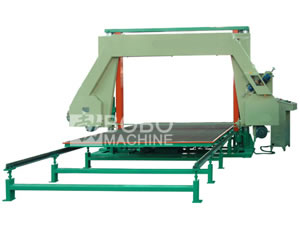

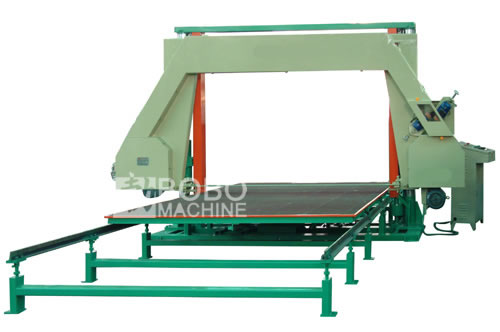

Horizontal Foam Cutting Machine

This product has been discontinued and removed from our shelves.

The horizontal foam cutting machine processes X-axis and Y-axis data into a graph that acts as a guide for the resistance wire and enables it to cut various EPS products. In short, the information entered into the computer automatically sends impulse signals for precision movement of both axes. When attached with a rotation device, the foam cutting machine becomes capable of 3D (three dimensional) operation.

Technical Specifications
Max. Products Size: 2000x1240x1240mm
Hot cutting wire size: 0.4-0.8mm diameter, 2000mm length
Suitable cutting Thickness: 0-1240mm
Cutting Speed: 0-3.5 m/min adjustable
Number of Operating Hot Wire Simultaneously: 1-20 piece(s)
Power Supply: 2.25KW
Transformer Capacity: 8KW
Control Mode: automatic work
Control System: AutoCAD
Cutting Mode: Three Dimension
Overall dimension: 2500x2000x2500 mm
Weight: 1800KG

BOBO Machine is a specialized horizontal foam cutting machine manufacturer in China. Apart from bolt and nut machine, we also offer punch press machine, filter paper pleating machine, among others.
