Wheel Roll Bending Machine

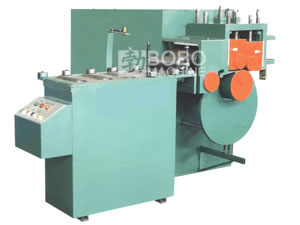

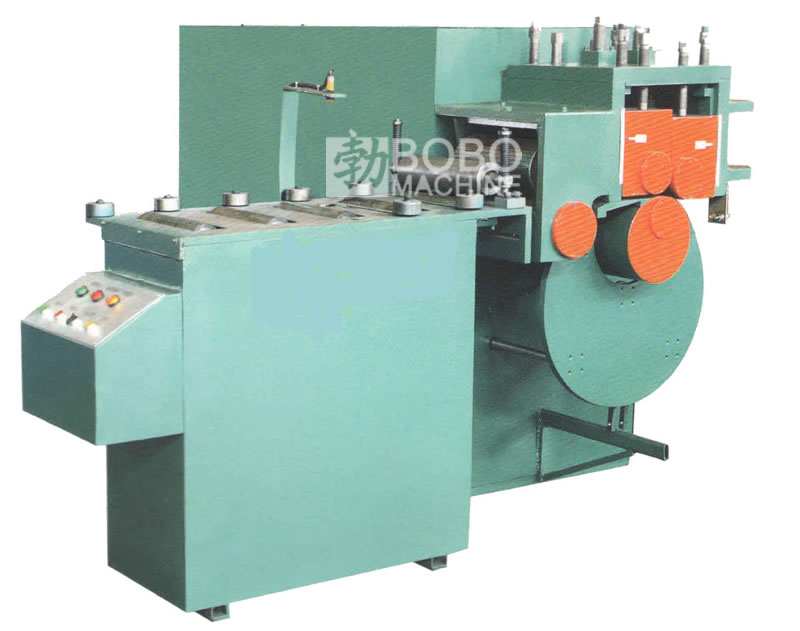

The wheel roll bending machine consists of a main frame, a three-roller system and a feeding table. It is capable of achieving simultaneous rolling and planishing with onboard PLC control. The bending roller originates from high integrity steel for dependable stability in working performance. Powered by a pneumatic system, the completed wheel rim is automatically unloaded via pneumatic pushing. The wheel rim roller is utilized for both flat sheet and profile steel plate. A parts warrantee is valid with the purchase of this machine.

Technical Specifications

Main roller 5 pcs
Driven roller 1 pc
Diameter of main roller 160mm
Processing diameter range 17.5" ~24"
Processing width 7" ~11"
Processing thickness 5-10mm
Unloading force 500Kgf
Main motor power 11KW
Weight 5.5ton

As a specialized wheel roll bending machine manufacturer and supplier in China, we also provide shearing machine and press brake, waste paper baler, corrugated pipe machine, and more.
