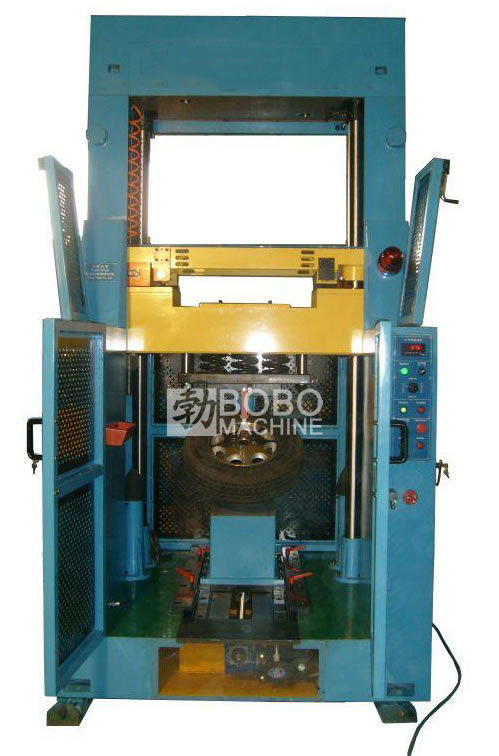

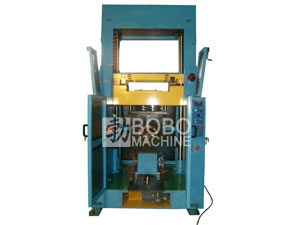

The wheel impact testing machine (13/30/90 degree) is used for the PC wheel impact test. It adheres to the ISO 7141:1995 passenger cars standards for light alloy wheels impact test and the SAE j 175 wheels impact test procedure for road vehicles as well as JIS, VIA, and TUV standards.
Technical Specifications
Test wheel diameter range: 12"~26", width range: 4"~12";
Maximum dropping height: 500mm;
Striker completes with releasing device, which can drop freely;
Main striker: 910±18kg
Weight: 100±4.5kg
Synthetic spring constant: 0.98-1.3kN/mm
Initial flexibility: 6mm
Spring number: 3PCS
Striker adjustable dropping height, dropping height: ≥500;
Striker impact section area: 380X152mm, striker side chamfer radius 5mm;
Wheel support center locates at the center of striker transversal plane.
BOBO Machine is a specialized wheel impact testing machine manufacturer based in China. Our company also supplies duct elbow machine, flexible duct machine, bolt and nut machine, and more.
