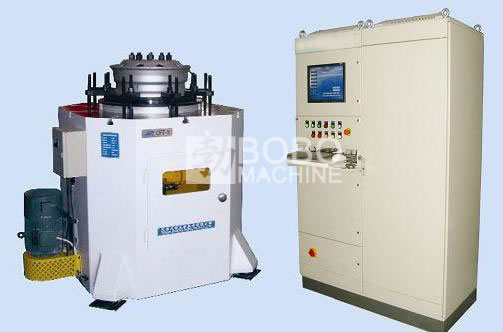

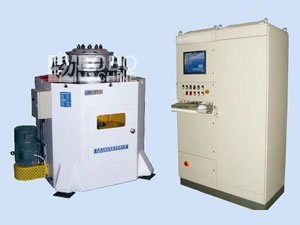

Wheel Cornering Fatigue Testing Machine

The wheel cornering fatigue testing machine is utilized for the PC wheel radial fatigue test and specifically designed to accommodate ISO, SAE, JIS, VIA and TUV standards.

Main technical data
Structure: Wheel rotates under the influence of a stationary bending moment.
Rated power: 20 Kw
Wheel diameter: 12"~26",
Wheel width: 4"~12"
Bending moment: 1~10kN.m, accuracy: ±1%
Rotation speed: 300~600rpm, accuracy: ±1%
Speed regulation mode: DC stepless drive
Load displacement: 0~+30mm, accuracy: ±0.05mm
Load mode: Precise ball-screw in closed-loop control
Dimensions: Approx.L2200mm×W2250mm×H1700mm
Total weight: max.3.5t

As an experienced wheel cornering fatigue testing machine manufacturer in China, our company also offers punch press machine, duct elbow machine, scrap metal baler, and rectangle duct machine, among others.
