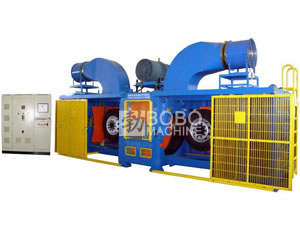

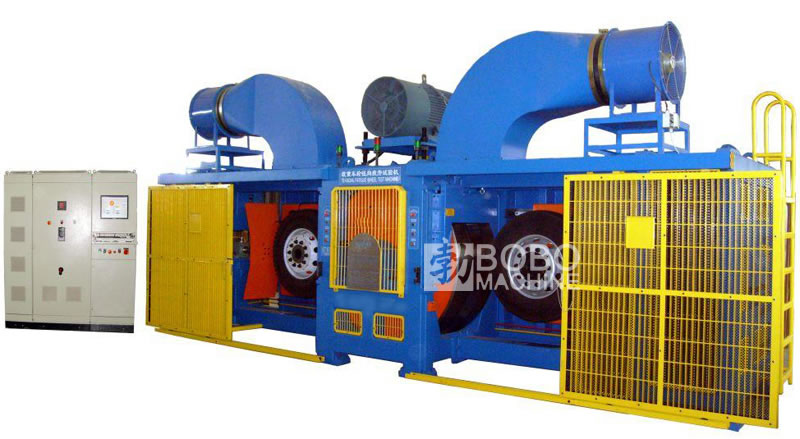

Wheel Radial Fatigue Testing Machine

The wheel radial fatigue testing machine is utilized for the PC wheel radial fatigue test and strictly adheres to the ISO, SAE, JIS, VIA, and TUV standards.

Technical Specifications
Structure: vertical machine frame
Test wheel diameter range: 12"~26"
Test wheel width range: 4"~12"
Test Load range: 300~3000 kgf
Load method: hydraulic servo in closed-loop control; load accuracy: ±1%P.S.
Test speed range: 20~140km/h
Drum diameter × width: Φ1707.6×400mm
Drum radial run-out :< 0.25mm
Drum residual imbalance :< 5g
Drum surface roughness: <3.2μm
Digital counter capacity: 1.0×10 r
Main motor power: DC 45kW
Load cell capacity: 3t
Weight: 12t

Our company is a professional wheel radial fatigue testing machine manufacturer and supplier in China. We also offer filter core making machine, flexible duct machine, corrugated pipe machine, car wheel rim machine, and much more.
