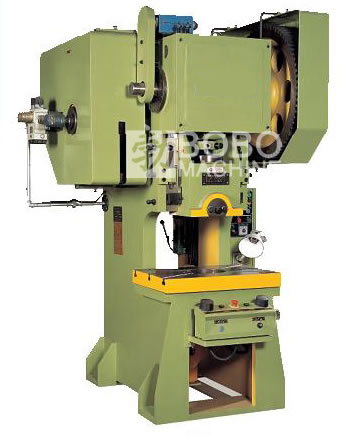

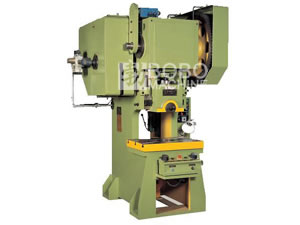

Fixed Table Punch Press Machine

Technical Specifications of the Fixed Table Punch Press Machine
Nominal force: 630KN
Stroke under nominal force: 4.0mm
Ram stroke: 120mm
Stroke time: 60 times/min
Max. mould height:300mm
Mould height adjustment: 80mm
Distance from stroke surface to table: 300mm
Working table dimension:
Front to back: 570mm
Left to right: 760mm
Bore size on the table:
Diameter: 50mm
Deepness: 80mm
Thickness of working table: 80mm
Distance between columns: 470mm
Motor power: 5.5KW
Dimension: 1700 x 1550 x 2640mm
Net weight:4500kg

As an experienced fixed table punch press machine manufacturer and supplier in China, we also provide flexible hose machine, PU Gasket Seal Machine, waste paper baler, and spiral duct machine, among others.
