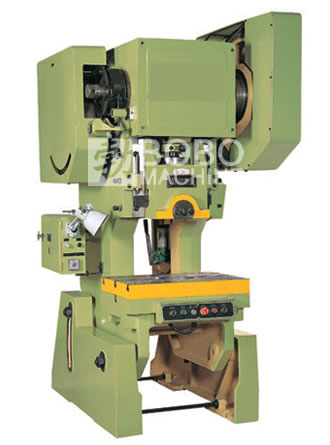

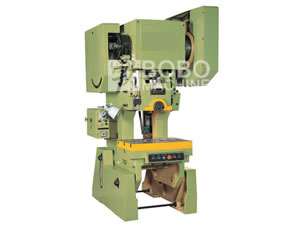

Inclinable Punch Press Machine

Technical Specifications of the Inclinable Punch Press Machine
Nominal force: 630kN
Stroke under nominal force: 8mm
Slide stroke: 120mm
Stroke frequency: 50
Max die set height: 270mm
Adjustment of die height: 80mm
Distance between slide block center to the frame: 260mm
Dimension of worktable: 480 x 710mm (F-B x L-R)
Thickness of worktable: 90mm
Dimension of hole on worktable: Φ200 x 45 x Φ180mm (upper diameter x deepness x lower diameter)
Dimension of slide block bottom surface: 280 x 320mm
Tool shank: 50mm x 80mm (diameter x depth)
Max. tilting angle of body: 25 degree
Distance between columns: 350mm
Motor power: 5.5kW
Dimension: 1810mm x 1350mm x 2640mm
Net weight / gross weight: 4000kg / 4300kg

Our company is a specialized inclinable punch press machine manufacturer in China. We offer a wide range of products, including eccentric press, rectangle duct machine, Packaging Foam Machine, spiral duct machine, and more.
