Stroke Adjustable Punch Press Machine

Home » Products » Machine Tools » Punch Press Machine » Stroke Adjustable Punch Press Machine

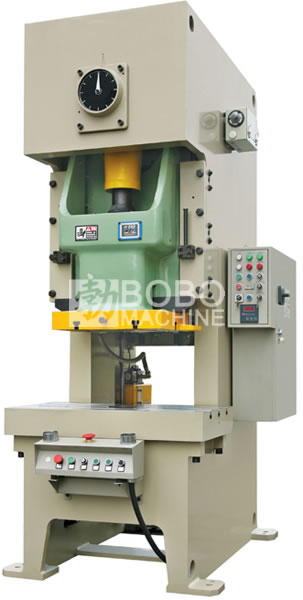

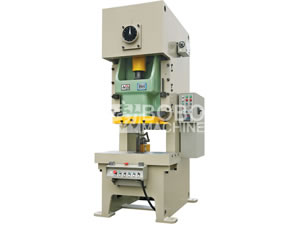

Stroke Adjustable Punch Press Machine

Technical Specifications of the Stroke Adjustable Punch Press Machine
Nominal force: 630KN
Stroke under nominal force: 4.0mm
Ram stroke: 120mm
Stroke time: 70 times/min
Max. mould height:300mm
Mould height adjustment: 80mm
Distance from stroke surface to table: 300mm
Working table dimension: 580 X 900 mm
Bore size on the table: 50 X 80mm
Thickness of working table: 80mm
Distance between columns: 560mm
Motor power: 5.5KW
Dimension: 1580 x 1210 x 2520mm
Net weight:5400kg

As a professional stroke adjustable punch press machine manufacturer and supplier in China, we also provide duct flange machine, metal chip briquetting machine, Polyurethane Spray Foam Machine, cardboard box baler, and much more.
