Polyurethane Spray Foam Machine BDF-II

Home » Products » PU Foam Machine » Polyurethane Spray Foam Machine » Polyurethane Spray Foam Machine BDF-II

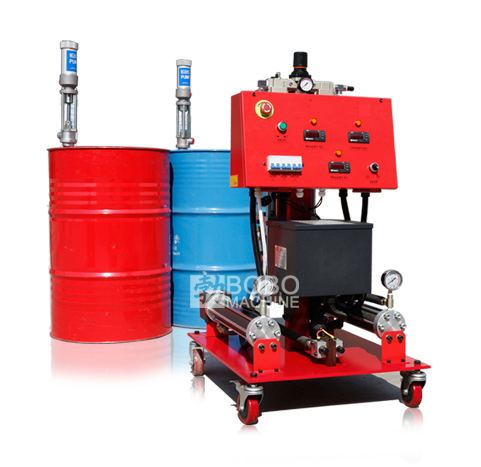

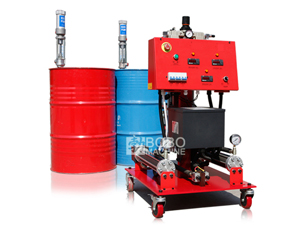

Polyurethane Spray Foam Machine BDF-II

The Polyurethane Spray Foam Machine BDF-II is widely utilized for various industrial applications such as wall and roof insulation work. The maximum spray hose length reaches up to 60m, ideal for long distance jobs. Attached with an efficient material feeding pump, the machine is capable of quickly pumping the desired material continuously. For improved working performance, the machine implements a material heating device. The Polyurethane Spray Foam Machine BDF-II is always kept well stocked in order to provide a prompt and speedy delivery. The estimated time of arrival is approximately 7 to 10 days. BOBO is also a supplier of raw material needed by the machine, such as Poly and ISO for various insulation applications.

BDF-II polyurethane spray foam machine is designed for site work, with the advantages of accuracy measuring, even mixing, moveable and portable structure, as well as excellent cost performance. The PU foam spraying machine is widely used for wall and roof thermal insulation, refrigerator freezer, and solar water heater foam pouring work. And we will offer all the necessary spare parts for at least one year of use.

Main Technical Data
No. Description Data
1 Flux capacity 6-9Kg/min
2 Max. material temperature 90 centigrade
3 Mixing pressure 12MPa
4 Heating capacity 8KW
5 Max. heating hose length 60meter
6 Driving method Pneumatic driven with air compressor
7 Electric power system 220V, 50/60Hz, single phase (can be customized)
8 Package dimension 600 X 600 X 1100 mm
9 Gross weight 150Kg

As an experienced Polyurethane Spray Foam Machine BDF-II manufacturer and supplier in China, we offer a wide variety of products, including scrap metal baler, filter core making machine, punch press machine, corrugated pipe machine, and much more.
