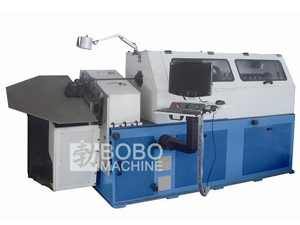

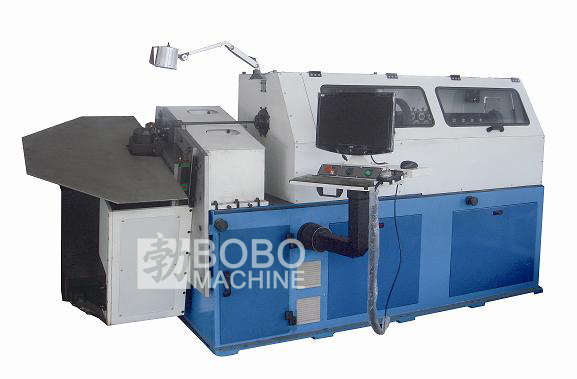

3D Wire Forming Machine

3D Wire Forming Machine

1. 3D wire forming machine adopts dedicated computer system imported from Taiwan, wire forming machine and high-density servo motor.
2. Easy to operate, with accurate positioning it can store hundreds of different processing procedure, shorten the time for the next time debugging
3. According to the situation on the screen, our wire bending machine can modify any angle at any time.
4. There is no line, broken line or tangled lines, which is benefited by automatic stop design. And the line automatic acceleration makes production easier and effective.
5. Application: Car seat suspension spring, visor skeleton, car lock rod, wire arts and crafts, clean tableware bracket, storage cage, shopping carts, etc.


Main Technical Data

Model BO-780
1 Wire size Φ3- Φ8mm
2 Axis 7
3 Wire feed length Unlimited
4 Wire feed speed 0-100m/min
5 Wire length Unlimited
6 Wire feed setting 0.01-9999.99
7 Cam setting 0.1-359.9
8 Wire feed motor power 2.7kw
9 Rotating motor power 2.7kw
10 Torsion motor power 2.7kw
11 Lifter motor power 2.7kw
12 Cutting motor power 2.7kw
13 Torsion and lifter motor power 2.7kw
14 Quill motor power 2.7kw
15 Weight 4300kg
16 Size 3600x980x1600
