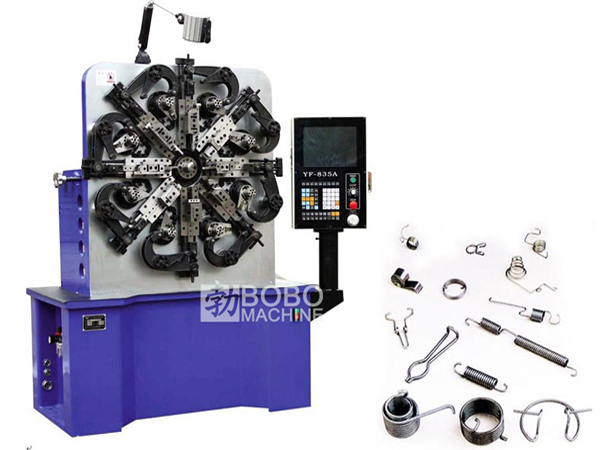

The CNC universal wire forming machine can be used to produce every kinds of straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc.
1. Our wire forming machine uses Taiwan imported computer control system and servo motors;
2. Features of English interface, simple operation and accurate positioning, the computer can control 3 to 8 servo motor, all motor can run synchronous or alone;
3. Precision testing tracking system is used to stop the machine automatically if there is any unqualified products;
4. According to the working condition on the screen, this spring making machine can modify outer diameter or angle of spring at any time;
5. Mechanical design of automatic lubricating oil supply ensures the equipment running for a long time;
6. Our spring forming machine is designed with automatic stop when it is wireless, disconnecting, and has tangled lines. It also has the function of line automatic acceleration, which makes the production easier and effective.
Main Technical Data
| Item | BO-835A | |
| 1 | Wire size | Φ0.5- Φ3.5mm(Iron Φ1.0-4.5mm) |
| 2 | Feeding length | Max. Φ80mm |
| 3 | Outside diameter | ±0.01 ～ ±9999.99 |
| 4 | Wire feed speed | 0-110m/min |
| 5 | Cam setting value | ±0.10º ～ ±359.90º |
| 6 | Cam rotation speed | 1 ～ 60RPM |
| 7 | Motor wire feed | 4.5kw |
| 8 | Motor cam | 4.5kw |
| 9 | Motor axis | 1kw |
| 10 | Power AC | 380V±10%V50HZ |
| 11 | Dimensions | 1320x730x1720mm |
| 12 | Weight | 1800KG |
