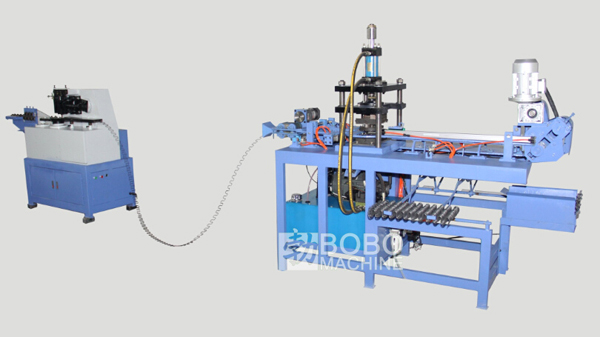

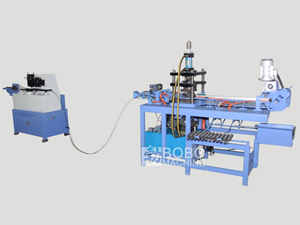

Zig Zag Spring Forming Machine

1. The zig zag spring forming machine is fully automatic working.

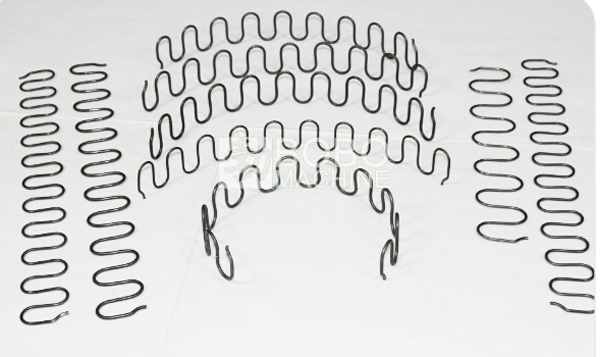

2. This automatic S-shaped spring making machine can produce two kinds of springs (flat spring, curve spring).
3. The spring forming machine can achieve automatic cutting, bending and other functions.
4. When the steel wire is run out, the spring making machine will stop working automatically.
5. High efficiency and the large diameter range.
6. Simple operation and easy maintenance.


Main Technical Data

1 Wire size Φ2.5- Φ5mm
2 Pitch 16-60
3 Height 28-100mm
4 Capacity 280peak/min
5 Motor power 4kw
6 Weight 1000kg
