Horizontal Decanter Centrifuge

Home » Products » Special Machine » Centrifugal Separator » Horizontal Decanter Centrifuge

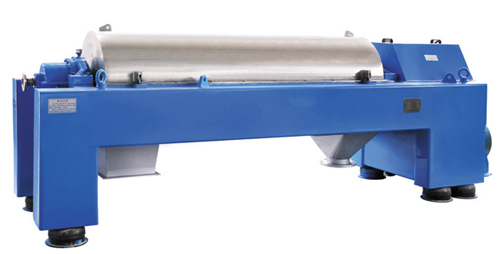

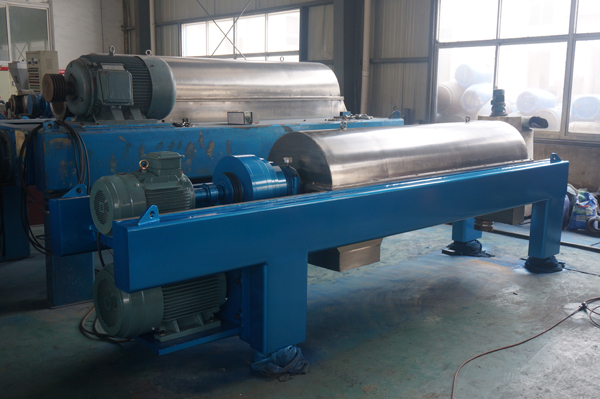

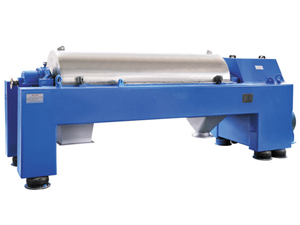

Horizontal Decanter Centrifuge

The horizontal decanter centrifuge is mainly used for the solid and liquid separation. It also can be used for the wastewater treatment, food dewatering and other fields.
This decanter centrifuge works by using different specific gravity of solid and liquid material, the strong centrifugal force is generated by the centrifuge, so that the solid and liquid can be separated.

Main Technical Data
1 Model LW220 LW250 LW300 LW350 LW400 LW450
2 Dimension 1790x1080x 640mm 2800x620x950mm 2480x1260x860mm 3420x820x1050mm 2400x1420x920mm 3640x1520x1000mm
3 Drum diameter 220mm 250mm 300mm 350mm 400mm 450mm
4 Drum length 660mm 1050mm 300mm 1480mm 1200mm 1940mm
5 Relative centrifugal force 2839g 2518g 2963g 2684g 2420g 2580g
6 Main motor power 11kw 11kw 11kw 15-22kw 18.5-30kw 30/45kw
7 Max. rotation speed 4800r/m 4200r/m 4200r/m 3700r/m 3500r/m 3200r/m
8 Capacity 02-2 m³/h 1-5m³/h 1-6m³/h 2-10m³/h 4-14 m³/h 8-20m³/h
9 Weight 900 kg 1460kg 1780kg 2180kg 2420kg 3360kg
