Three-Phase Decanter Centrifuge

Home » Products » Special Machine » Centrifugal Separator » Three-Phase Decanter Centrifuge
Condenser and Evaporator Equipment

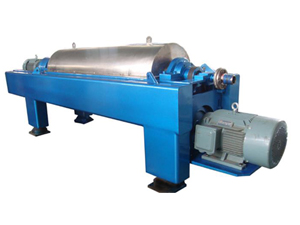

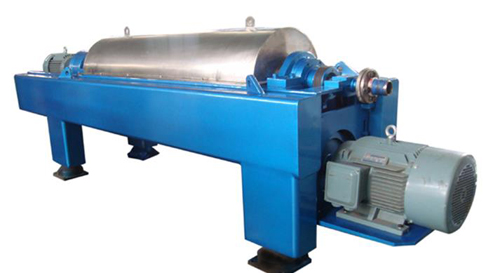

The 3 phase decanter centrifuge machine uses centrifugal sedimentation principle to separate the solid, liquid (water) and liquid (oil) in the suspension continuously.
This decanter centrifuge is widely used to separate oil, water and other materials in oil and mining industry. Its speed can be changed through pulley and belt. And it can realize infinite speed variation in a large scope.

Main Technical Data
1 Model LWS250 LWS350 LWS400 LWS500 LWS580
2 Dimension 2900x700x 900mm 3100x1000x 1250mm 3900x1100x 1350mm 4300*1600*1350mm 4500*1650*1350mm
3 Drum diameter 250mm 350mm 400mm 500mm 580mm
4 Drum length 1050mm 1460mm 1750mm 2000mm 2320mm
5 Relative centrifugal force 2465g 2400g 2700g 2515g 2363g
6 Main motor power 15 kw 30kw 37kw 55+11kw 75+11kw
7 Max. rotation speed 4200r/m 3500r/m 3500r/m 3000r/m 2700r/m
8 Capacity 1-1.5 m3/h 2-4 m3/h 2-6 m3/h 5-9 m3/h 4-12 m3/h
9 Weight 1500kg 3800kg 450 0kg 5500kg 6400kg
10 Material SS304 SS304 SS304 SS304 SS304
