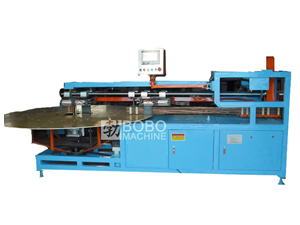

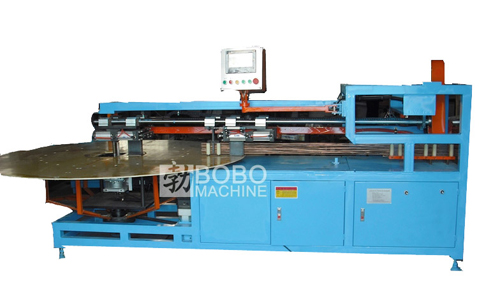

Serpentine Tube Bender for Condenser

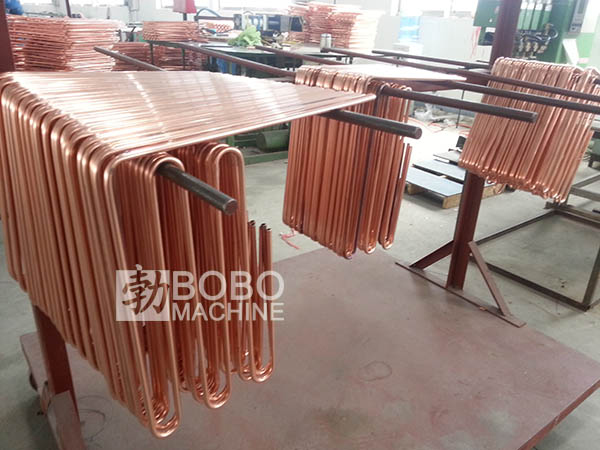

The serpentine tube bender for condenser is a special equipment for forming refrigerators, freezers condenser, and evaporator pipes. It can bend steel tubes and bundy tubes, and thin-walled tubes with different specifications.
The automatic serpentine tube bending machine adopts advanced PLC control, that can adjust bending radius, bending angle, bending times in a certain range. All the bending procedures are worked automatically, and this tube bender also has the manual operation function. Feeding and bending processes are pneumatically controlled.

Technical Parameter
1. Tube diameter: Φ4-10mm
2. After bending deformation in R section: ≤20%
3. Flatness after bending: ≤3mm
4. Working pressure: 0.6Mpa
5. Electric power: 3.8kw
6. Bend radius: R9-R40
7. Feeding length: 0-900mm
