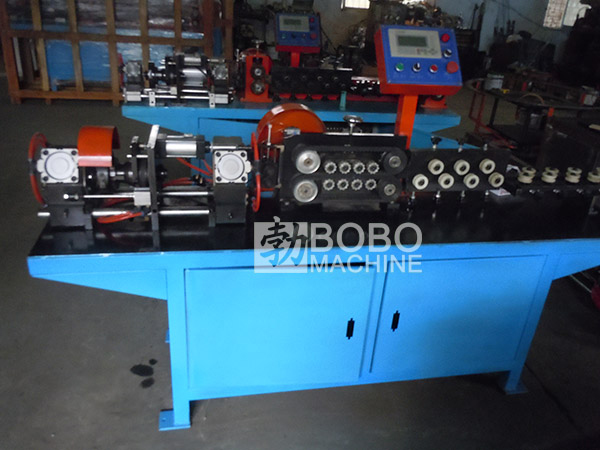

Tube Straightening and Cutting Machine

This tube straightening and cutting machine is a special equipment for automatically straightening and cutting customized copper tube and aluminum tube. It is used for feeding materials of tube, such as condenser and evaporator in refrigerator, freezer, air condition, oil way and air way of automotive, etc. This tube straightening machine adopts AC variable-frequency drive, photoelectric length and angle measuring device, the whole machine is controlled by PLC.

Features
1. This tube cutting machine adopts PLC controller, develop fuzzy automata control technology, applies the latest alternating current converter speed-adjustable technology.
2. It can control start-stop, speed-up and speed-down precisely;
3. The photoelectric coder is used for measuring length, that makes our tube cutting machine sensitive and precise.
4. Electromagnetic type rotating-cutter and auxiliary electromagnetic brake are used to control the fast-stop of the motor and feeding tray.
5. This tube straightening and cutting machine has 3 operation ways, such as auto-preset length, automatic and manual operation

Main Technical Data
Material Copper tube, aluminum tube, steel tube, bundy tube
Tube diameter ￠ 4-- ￠ 20mm
Tube thickness 0.4-1.2mm
Length range According to customer requirement (50mm-99m)
Length error ＜ ±0.5mm
Non straightness ≤3mm/m
Cutting type Cut pull
Capacity 9-15pcs/min(5m/piece)
Electric power 1.12kw
Air pressure 0.6-0.8Mpa
